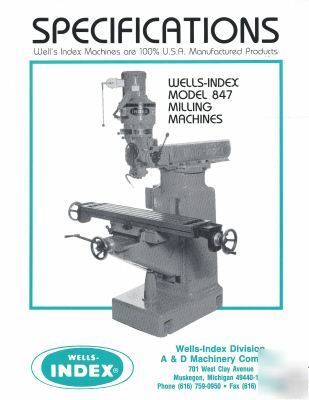

The Model 847 is a massive, rigid machine weighing 1 3/8 tons and is made from high tensile strength close grained American cast iron. The Model 847 is 100% U.S.A. precision built and inspected in every area to provide years of optimum performance at lower cost. A few of the standard features on the Model 847 included at no extra cost are: A. Power feed on the vertical quill. Available at all spindle speeds and rated for a 5/8 drill. B. A one-shot lubrication system. C. Hand scraped hard chromed ways. F. 3HP continuous duty spindle drive motor. G. Precision ground Acme lead screws and nuts. Center of Table to Column Face - Max ................................ 19 Center of Table to Column Face - Min ................................. 5 Quill Travel .......................................................................... 5-1/4 Spindle Nose to Top of Table - Max ................................... 16-1/2 Center of Spindle to Column Face - Max ........................... 28 Center of Spindle to Column Face - Min ............................ 2-1/2 Spindle Taper, your choice (uses drawbar) ....................... #9B&S, R-8 or #30MMT Spindle Rotation .......................................................... Forward and Reverse Back Gears ....................................................................... 50 to 525 RPM Direct Drive ..................................................................... 400 to 4200 RPM Spindle Motor (continuous duty) ........................................ 3HP Quill Feeds (3) - Per Spindle Revolution ............................ .0015 , 0.003 , 0.006 Contact us for a freight quote. We have freight discounts available. (Wells-index 847 vertical mill was posted and is owned by: Naomi Watts) |
