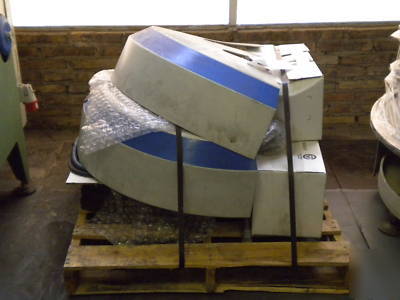

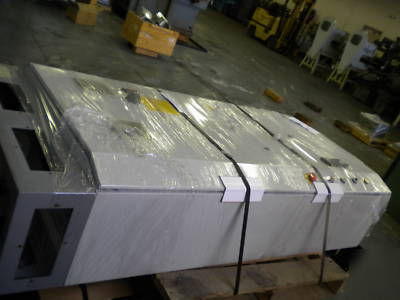

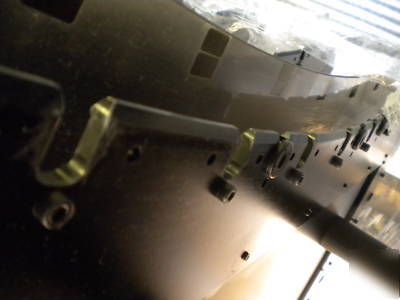

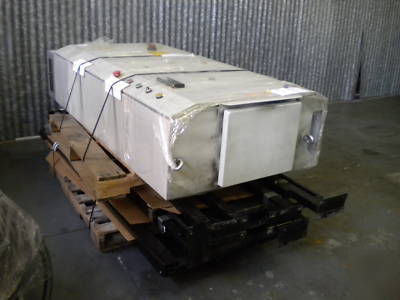

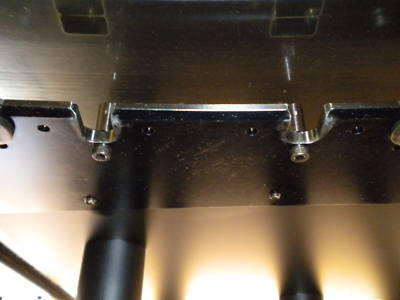

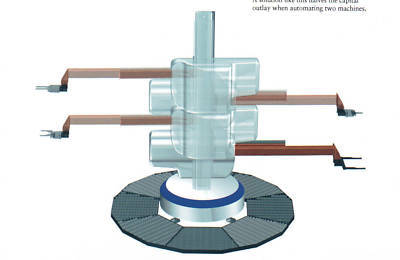

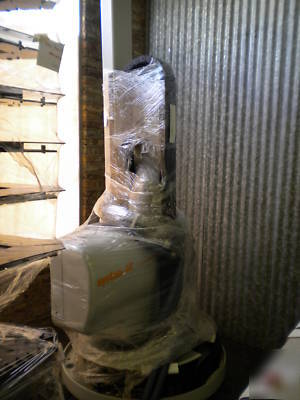

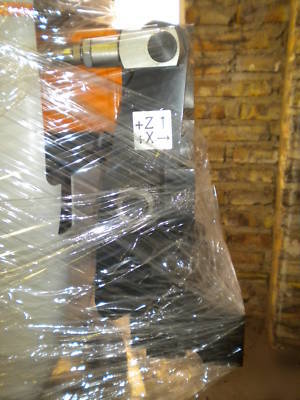

This is a working System 3R Workmaster Robot. It was used in a Charmilles automated cell. Includes a 4 position carousel capable of up to 244 tools. The sale includes. Transfer weight pallet with workpiece 75 kg or 150 kg, electrodes 10 kg X-, Z- and C-axes AC servomotor Rotation, C-axis, 300 degrees Power supply required: three-phase 400 V AC, 3.5 kVA Air pressure required 6 1 bar, 150 l/min Interface - serial R232/422, M-function or parallel I/O Maximum total load 1000 kg Maximum dimensions workpiece: 44x44 / 44 mm Maximum dimensions workpiece: 65x65 / 90 mm Maximum dimensions workpiece: 90x90 / 95 mm Main purpose: Automatic loading and unloading of workpieces/electrodes/ cutters/grinding-wheels in all types and brands of machine tools. Can load number of machines: 3, in special cases 4. Tooling systems: All automatic tooling systems from System 3R and Mecatool. HSK, ISO tapers etc. Specification - maximum weights: View the list Weight capacity total in magazine: Rotary: 1000 kg Maximum workpiece dimension: 900x500mm (WxD) Power Supply: 3 x 200V or 3 x 400V or 3 x 460V transformer incl. Outer dimension: Tailored upon request Total weight of Manipulator: 850 kg (System 3R workmaster robot. 3R, robot, edm, automation was posted and is owned by: Erika Acevedo) |
erika-acevedo@chicagopartsnetwork.com (Erika Acevedo) for more information.
