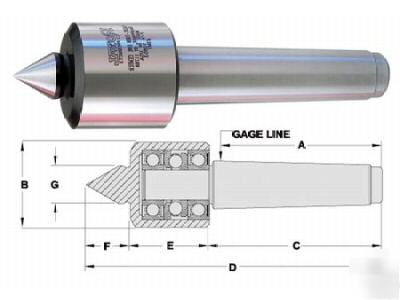

# 1 Morse Taper Royal # 10851 A 2-1/8" B 1-11/16" D 4-13/16" E 1-9/16" F 7/8" G 3/4" # 2 Morse Taper Royal # 10852 A 2-9/16" B 1-11/16" D 5-1/4" E 1-9/16" F 7/8" G 3/4" # 3 Morse Taper Royal # 10853 A 3-3/16" B 1-11/16" D 5-7/8" E 1-9/16" F 7/8" G 3/4" # 4 Morse Taper Royal # 10854 A 3-1/16" B 2-7/16" D 7-11/16" E 2-1/32" F 1-3/16" G 1-1/8" # 5 Morse Taper Royal # 10855 A 4-3/16" B 2-7/16" D 8-13/16" E 2-1/32†F 1-3/16" G 1-1/8" Excellent for light/medium work on manual lathes . +0.0001" TIR guaranteed. Point has a 60° (+15' - 0) included point angle for correct center hole engagement. Two radial ball bearings and a thrust bearing provide good overall load ratings. Rotating point/case is hardened for wear resistance. Rear bearing is sealed, protecting assembly from coolant and chips. Reduced knockout diameter prevents taper from mushrooming. We require a physical address on all items (Royal value-turn live centers morse taper # 3 was posted and is owned by: Alyssa Watkins) |
