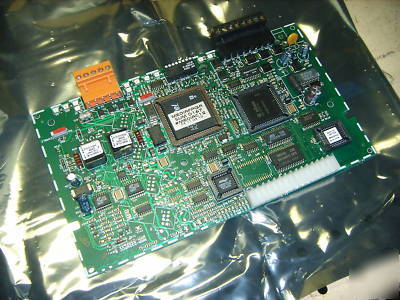

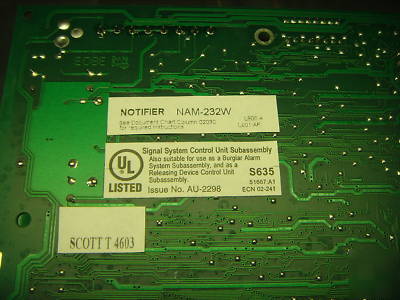

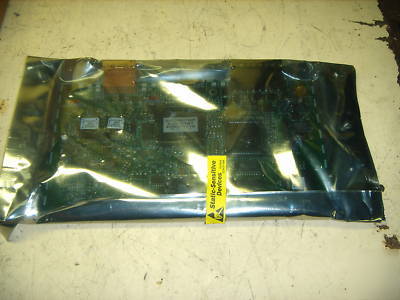

The NAM-232 Network Adapter Module functions as an interface between the AFP-200, AFP-300, and AFP-400 Fire Alarm Control Panels and the The control panels each consume a single-node address on the network. The NAM-232 interfaces to the control panels through the EIA-232 serial communications port. is a series of systems that allow a group of Fire Alarm Control Panels and other control equipment to connect together to form a true peer-to-peer network. Equipment that connects to and communicates with other equipment using the network may be referred to as a network node. An AM2020/ AFP1010 Fire Alarm System with a SIB-NET Serial Interface Board installed, an NCS Network Control Station, an INA Intelligent Network Annunciator, and an AFP-200/ 300/400 with a NAM-232 may all be network nodes. The network supports communications over a twisted-pair wire or fiber-optic medium. A network combination of both wire and fiber may exist in the same network. Supports twisted-pair wire medium. Data is regenerated at each node. DIP switch selectable single-port or dual-port monitoring. DIP switch selectable network drill option. Selectable Earth Fault detection per channel. Provides electrical isolation between nodes. Transmission rate of 312.5 Kbaud. NFPA Style 4 & 7 network operation. (Notifier nam-232W fire alarm network adapter module was posted and is owned by: Eugene Buchanan) |
E-buchanan@chicagopartsnetwork.com (Eugene Buchanan) for more information.
