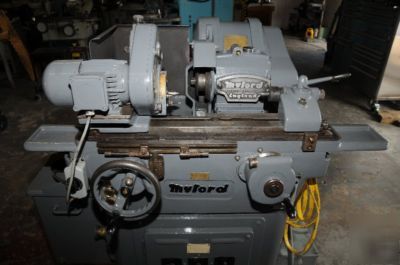

5" x 12" Myford Precision Plain Handfeed Grinder MAXIMUM GRINDING DIAMETER ............................ 3" SWING OVER TABLE ..................................... 5" MAXIMUM TABLE TRAVEL ............................ 13-3/4" CAPACITY BETWEEN CENTERS ............................ 12" TABLE SWIVELS EITHER WAY ...................... 7 DEGREES TABLE TRAVEL PER REVOLUTION OF HANDWHEEL ... 2.04"& 0.51" TOTAL TRAVEL ......................................... 3" FINE FEED ADJUSTER (NUMBERED DIVISIONS) ......... 0.0001" WHEEL SPEEDS (2) ........................ 1830 & 1988 RPM GRINDING WHEEL (RECESSED) ............. 12" X 1-1/2" X 5" MINIMUM WHEEL DIAMETER FOR ZERO WORK DIAMETER ... 10-1/8" WHEELHEAD MOTOR .................................. 3 H.P. WORKSPEEDS, STEPLESSLY VARIABLE ........... 50 TO 900 RPM CAPACITY THROUGH STANDARD DRAW TUBE ................ 3/4" MAXIMUM COLLET CAPACITY ............................ 3/4" WORKHEAD MOTOR ................................. 1/2 H.P. APPROXIMATE MACHINE WEIGHT ..................... 1500 LBS (5" x 12" myford "precision" plain hand feed od grinder was posted and is owned by: Elba Cain) |
ecain@chicagopartsnetwork.com (Elba Cain) for more information.
