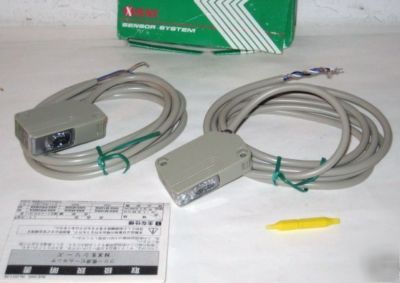

* Model / Part # 1: NX5-M10RN (NX5M10RN) * Model / Part # 2: NX5-M10RAD (NX5M10RAD) * Model / Part # 3: NMX5-M10RP (NMX5M10RP) * Description: Photoelectric Sensor Compact Multi-voltage Photoelectric Sensor * Multi-voltage - The NX5 series can operate at 24 to 240 V AC or 12 to 240 V DC, which makes it suitable for supply voltages around the world. * Compact size - Despite of being multi-voltage, it has a depth of just 35 mm 1.378 in. (W18 x H62 x D35 mm W0.709 x H2.441 x D1.378 in) * Long sensing range - It is most suitable for conveyor lines and parking lot applications. * High reliability - It has an IP66 protection. Moderate dust or water splashes will not affect the sensor. The hermetically sealed output relay significantly increases its reliability. * Easy alignment - The 10 m 32.808 ft thru-beam type sensor and the 5 m 16.404 ft retroreflective type sensor incorporate a red LED beam source. Beam alignment can be attained by checking the emitted beam visually. * Interference prevention - Two sensors can operate normally even if mounted close together. (Excluding the 30 m 98.425 ft thru-beam type sensor) * Sensing range: 10 m 32.808 ft * Sensing object: 20 mm 0.787 in or more opaque object * Repeatability (perpendicular to sensing axis): 0.1 mm 0.004 in or less * Supply voltage: 24 to 240 V AC +10 /-15 % or 12 to 240 V DC +10 /-15 % Ripple P-P 10 % or less * Power consumption: Emitter: 1 VA or less / Receiver: 2 VA or less * Output Relay contact 1 c * Switching capacity: 250 V AC 1 A (resistive load) 30 V DC 2 A (resistive load) * Electrical life: 500,000 or more switching operations (switching frequency 3,600 operations/hour) 100,000 or more switching operations (switching frequency 3,600 operations/hour) * Mechanical life: 100 million or more switching operations (switching frequency 36,000 operations/hour) * Output operation: Dark-ON * Response time 10 ms or less * Operation indicator Red LED (lights up when the output is ON) * Stability indicator Green LED (lights up under stable light received condition or stable dark condition) * Sensitivity adjuster Continuously variable adjuster * Pollution degree 3 (Industrial environment) * Ambient temperature -20 to +55 - 4 to +131 / (No dew condensation or icing allowed) / Storage: -30 to +70 -22 to +158 * Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH * Ambient illuminance Incandescent light: 3,500 lx at the light-receiving face * EMC EN 61000-6-2, EN 61000-6-4 * Voltage withstandability 1,500 V AC for one min. between power supply and output terminals, 1,000 V AC for one min. between relay contact terminals * Insulation resistance 20 M , or more, with 500 V DC megger between power supply and output terminals, and between relay contact terminals * Vibration resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each * Shock resistance 500 m/s2 (50 G approx.) in X, Y and Z directions for three times each * Emitting element Red LED (modulated) * Automatic interference prevention function (Use optional interference prevention filters) * Material Enclosure: Polycarbonate, Lens: Polycarbonate, Cover: Polycarbonate, Front cover (retroreflective type sensor only): Acrylic * Cable 0.3 mm2 5-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long * Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable (thru-beam type: both emitter and receiver). For further information, please visit Sunx's product page at http://sunx.jp/en/products/photoelectric/nx5/specifications.html (Sunx NX5-M10RN M10RP M10RAD photoelectric sensor was posted and is owned by: Eddie Ayers) |
Eddie_Ayers@chicagopartsnetwork.com (Eddie Ayers) for more information.
