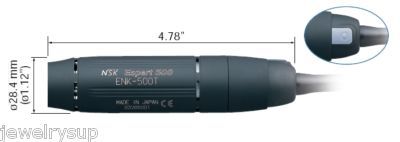

ULTRA-PRECISION BRUSHLESS ESPERT 500 TORQUE TYPE MOTOR ENK-500T Evolutionary New Design High-Performance Brushless Micro Grinder. High Power System. Max. Output 200W Speed Range : 1,000~50,000 min-1(rpm) Microprocessor controlled for optimal motor control Hand Switch [NAKANISHI Smart Switch] Torque Motor (ENK-500T) : 1 pc. High-power, high-torque, high-speed brushless DC motor. Incorporates the NAKANISHI Smart Switch for easy on/off operation. Very low vibration noise and maintenance. Speed 1,000~50,000 min-1(rpm) The Espert 500 brushless motor takes motor technology to an even higher level. The new state of the art motor has dramatically increased efficiency and torque output. The microprocessor based control unit provides optimal control of the motors and allows for increased flexibility in this multi-function system. Speed : 1,000~50,000 min-1 (rpm) Speed is steplessly variable from 1,000~50,000 min-1 (rpm). Smooth and powerful torque is delivered at both high and low speeds. The extremely high maximum speed of 50,000 min-1 (rpm) allows high precision micro-machining. The switch provides a click sensation and a confirmation tone is produced by the control unit when the switch is operated. The motor type is distinguishable by the switch color. High performance brushless motor eliminates the need to change carbon brushes. NAKANISHI's internal load test has proven continuous use for more than 5,000 hours. NAKANISHI's ultra-precision technology ensures bur concentricity of 0.02 mm (0.0008") or less, which allows for very high precision finishing. The brushless motor and incorporated cooling fan have reduced the vibration and noise levels, resulting in a quieter, more comfortable work environment. Dramatically compared with conventional grinders. The handpiece has a patented built-in-dust protection system to prevent the infiltration of dust and debris into the front bearings. This NAKANISHI patented design assures long-term durability. 10 Types of Attachments Available (OPTIONAL) All of the Espert 500 system attachments are available for use with this system. 9 different types of attachments and 1 speed reducer making an almost infinite number of applications possible. Wide Range of Collet Available (OPTIONAL) Collet sizes range from a tiny 0.3 mm up, with a wide variety of sizes available. Tools can be changed without the use of any wrenches. Micro Grinder & Handpiece Stand This specially designed micromotor stand allows easy pick-up and set-down of the micro-grinder. Strong, but soft to the touch, the micro-grinder stand contains convenient, integrated storage compartments for adjustment wrenches and a spare chuck. (Nsk espert 500 torque type motor enk 500T was posted and is owned by: Shawn Witt) |
Shawn_Witt@chicagopartsnetwork.com (Shawn Witt) for more information.
