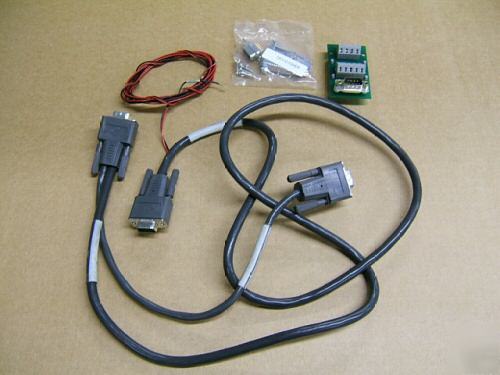

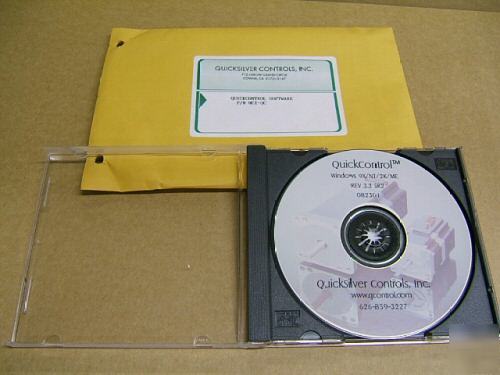

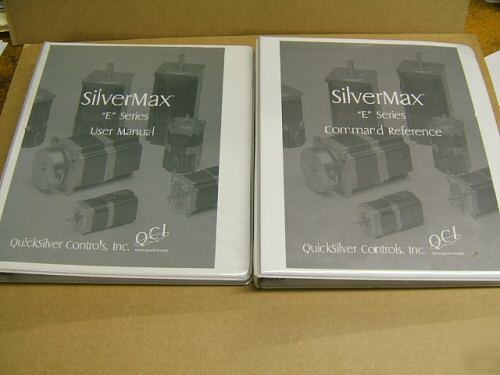

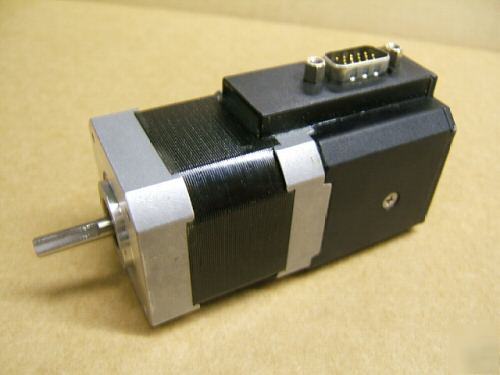

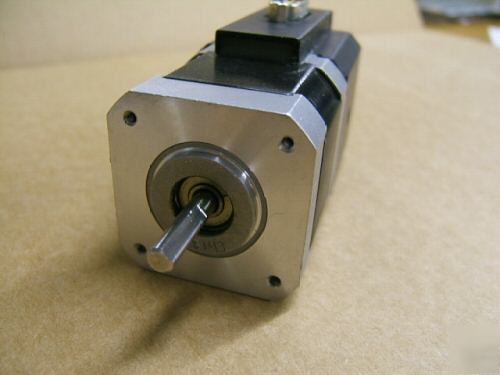

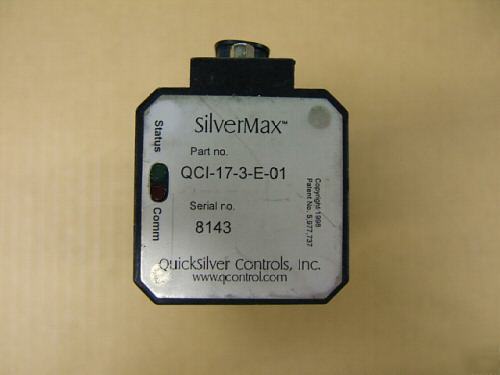

Quicksilver Controls Silvermax Servo Motor with Integral Control This lot is a servo motor and control all in one unit. The control is attached to the back of the motor which reduces wiring to the motor. The control is a very advanced controller with full feature software control. A “Start Up Kit†is also included in this lot which includes software for the PC, wiring including a breakout module for input/output connections, a 136 page User Manual, and a 225 page Command Reference Manual. Both manuals are bound in an attractive three ring binder. Motor Shaft Diameter: 0.1968 inch (5mm) Shaft has a flat. Mounting holes for motor are tapped holes with 4-40 thread. Mounting hole dimensions are 1.220 inch square Full feature serial communications Position Resolution: 4000 counts per revolution Velocity Resolution: 0.000000031 revolution per second Torque Control: 1 part in 32768 Servo Sample Rate: 120 microseconds/8.33kHz This motor was used for testing purposes only. It was NOT pulled out of an old machine. This item is like new. This lot was $700.00 when I purchased it new a few years ago. (Quicksilver controls silvermax servo motor with control was posted and is owned by: Eunice Butler) |
ebutler@chicagopartsnetwork.com (Eunice Butler) for more information.
