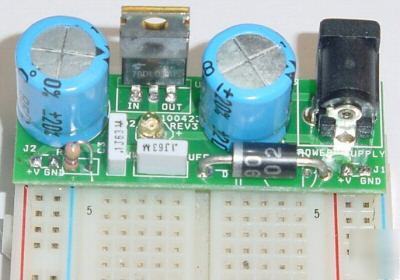

Plugin Breadboard Power Supply +5V Kit and +12V Kit with 2 Solderless Breadboards and a Case of Jumpers Wallwart & FREE Parts Kit Included GREAT Revised PRODUCT....GREAT New Low PRICE Above shows +5V and +12V inserted into Solderless Breadboard with Wall Wart QTY 1 Kit # 400039 Requires Soldering +5V TO-220 7805 Type Regulator with Low Dropout Voltage 1. Multiple Power Supplies can be used with multiple breadboards. It creates an excellent prototyping environment allowing your heavy duty lab Power Supply to be used on the bigger loads. 4. Uses the 78XX series regulator. The most common regulator out there. 5. Multiple Voltages available 5-6-8-9-12-15-18-24 vdc. 6. A fuse can be added to create an independently fused Power Supply for custom applications. 7. A blocking diode has been added to protect the input from reverse polarity at hookup. 8. LED designate Output Voltage ON. 9. Allows you to utilize some of those wall wart Power Supplies that you have laying around. There is always an overabundance of these. Give them a new life by recycling them into your new test fixturing. 10. Provide an in depth understanding of Power Supply design. 11. Easy to assemble and solder. 12. Easy connect/disconnect to a wall wart with a 2.1mm coaxial socket. 13. Easy connect/disconnect to a breadboard. It plugs into the breadboard power distribution strips. 15. Easy to follow, step by step assembly instructions. 16. Detailed linear Power Supply operations tutorial. 19. Detailed MC78XX spec sheet * Qty 2 830 Pt Breadboard #100281 (shown above) * Qty 1 Case of Jumpers #100411 (not shown) * Qty 1 +5V 7805 Type Power Supply Plugin Kit #400039 * Qty 1 +12V 7812 Type Power Supply Plugin Kit #400047 - wallwart required 13-18vdc (NOT INCLUDED, not shown in Picture) * Qty 1 FREE Wallwart #100369 * Qty 1 FREE Parts Kit #400049 FREE Parts Kit #400049 includes (qty of each part may vary from photo) #100350 Resistor SIP 8 Pin Bussed 4.7K .1SP 1 common (7 resistors in one) #100040 .1uF CAP 63V 5% TH bypass square .2sp .1J63M Quality metal polyester Film #100256 PCB Connector 1x6 MTA .156SP Male AMP #100093 Pushbutton Switch with Button DPDT snap on snap off FREE Parts Kit #400049 - pictured below (qty of each part may vary from photo) Requires Soldering Solders in minutes ! Check out the Breadboard Section in our store - DAQ stuff store (Power supply kit +5V to-220 7805 type regulator w/brdbd was posted and is owned by: Polly Oconnor) |
