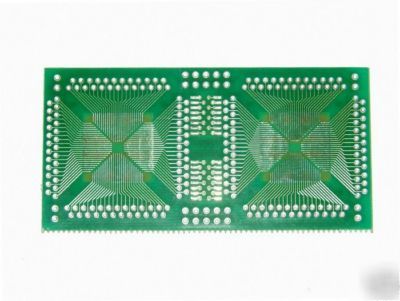

LQFP-100 and SO-16 prototype board This prototype board can be useful by developers, which want fast started with any IC in LQFP-100 or smaller case. * High quality 2 layers PCB with green mask * Two LQFP-100 PCB placement. Can be used for mounting any LQFP pacjage with 100 pins or smaller (LQFP 32, LQFP 64 and other). Pin-to-pin spacing is 0,5mm (19,7 mil) * Two SO-16 PCB placement. Can be used for mounting any IC is SO-16 case (for example MAX232 or other) * all pins of PCB placement has connectors for soldering any wire or connector * 2 bus of power on bottom side of board, that can be connected to any pin of PCB placement. They are have placement for mounting filtering capasitors (Lqfp-100, so-16 ( 2 layers) prototype board avr pic arm was posted and is owned by: Judith Hughes) |
