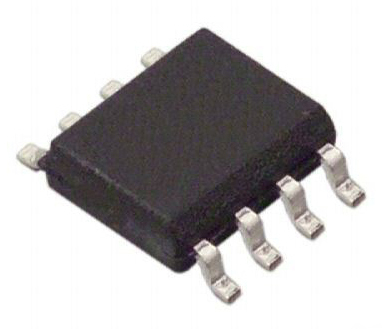

High Peak Output Current: 10A (typ.) Low Shoot-Through/Cross-Conduction Current in Wide Input Supply Voltage Operating Range: High Continuous Output Current: 2A (max.) Matched Fast Rise and Fall Times: Matched Short Propagation Delays: 42 ns (typ.) - With Logic 1 Input 130 A (typ.) - With Logic 0 Input 33 A (typ.) Low Output Impedance: 1.2 (typ.) Latch-Up Protected: Will Withstand 1.5A Output Input Will Withstand Negative Inputs Up To 5V Pin-Compatible with the TC4420/TC4429 and TC4421/TC4422 MOSFET Drivers Line Drivers for Extra Heavily-Loaded Lines Driving the Largest MOSFETs and IGBTs (Ics chips:TC4422AVOA 9A high-speed single mosfet driver was posted and is owned by: Lisa Hill) |
