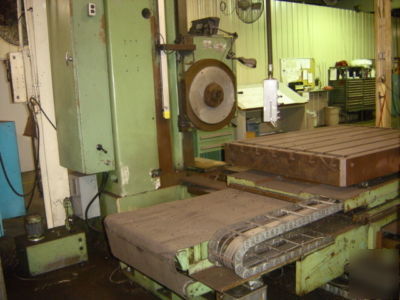

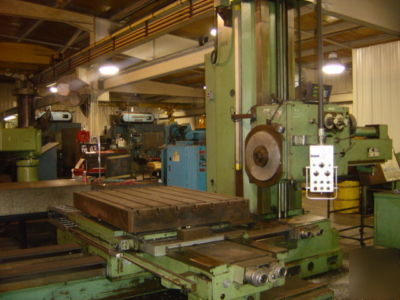

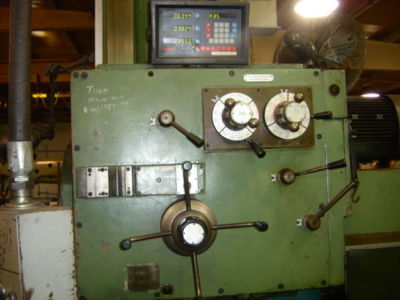

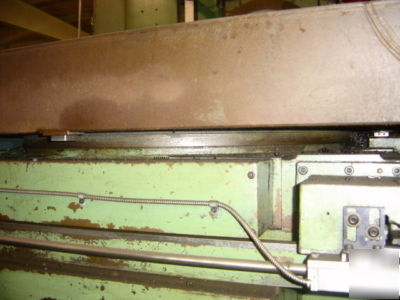

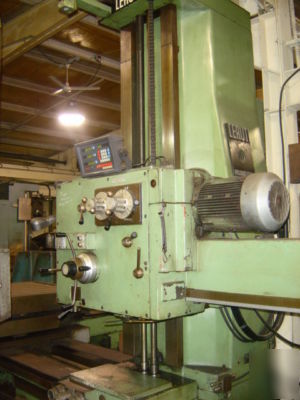

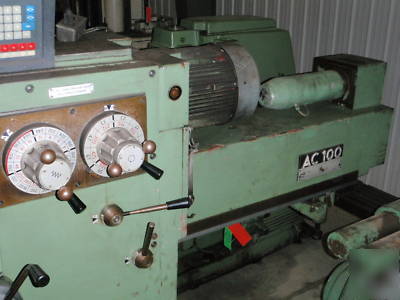

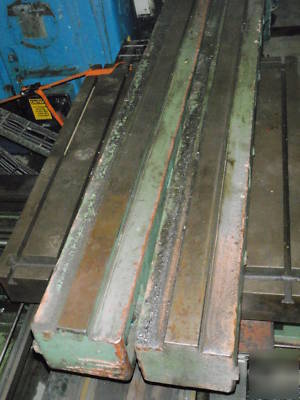

CERUTI MODEL AC100 UNIVERSAL BORING MILL Spindle dia. of boring spindle 105 mm / 4.13 Diameter of milling spindle 175 mm / 6.89 Diameter of cutter holder 221 440 mm / 8.7 17.3 Speed ranges (standard) 12-1200 RPM Min & max height on table surface 0-1500 mm / 59.1 Table Working dimensions 1100x1450 sq mm / 43 x57 Cross travel, special with side supports 1500-1800 mm / 59.1 x70.9 Longitudinal travel, standard 72 Max permissible load 5000 kg / 11,023 lbs Approx weight 13,800 kg / 30,423 lbs Automatic feeds (for all slides) Number of feeds per revolution 16 Feed range per revolution 0.025-4.8 mm/rev Feed range per min 6.25-1200 mm/min Mill is equipped with power drawbar, DRO, and built-in rotary table, 12-1200 RPM. (6225 ceruti AC100 4" horiz. boring mill 57" x 43" table was posted and is owned by: Lula Ballard) |
lula.ballard@chicagopartsnetwork.com (Lula Ballard) for more information.
