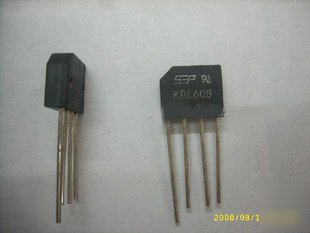

GLASS PASSIVATED BRIDGE RECTIFIERS voltage range: 50-1000V current: 6.0A Surge overload rating to 250 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. Maximum recurrent peak reverse voltage VRRM 200 400 (***) 800 1000 V Maximum RMS voltage VRMS 140 280 420 560 700 V Maximum DC blocking voltage VDC 200 400 (***) 800 1000 V Maximum instantaneous forw ard voltage Maximum reverse current @TA=25 A at rated DC blocking voltage @TA=100 mA Operating junction temperature range Tj Storage temperature range TSTG Lead solderable per MIL-STD-202 method 208 http://pdf.dzsc.com/88889/44790.pdf (15 glass passivated bridge rectifier 50-1000V 6A KBL610 was posted and is owned by: Lilia Mcconnell) |
