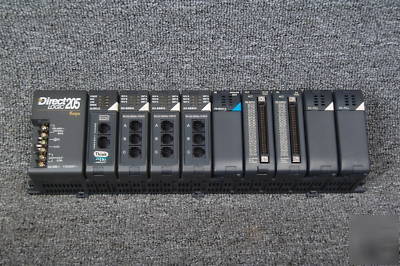

Koyo direct logic dl 205 H2-WPLC2,H2-serio,F2-08AD-2 #6


Koyo direct logic dl 205 H2-WPLC2,H2-serio,F2-08AD-2 #6

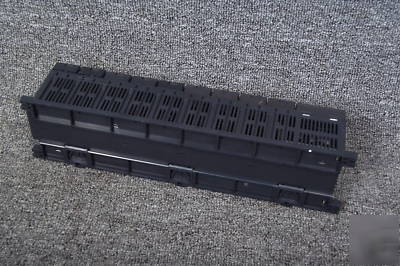

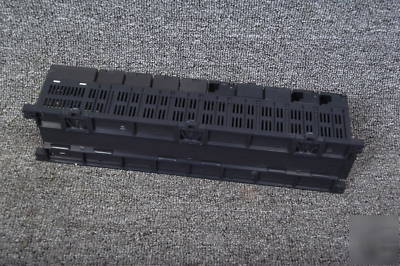

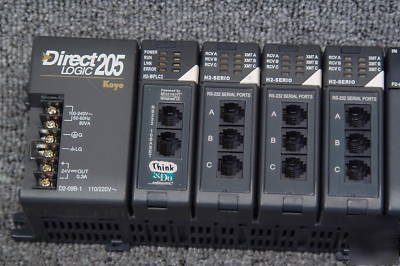

* D2-09B-1 BASE (9-SLOT, WITH POWER SUPPLY IN-AC110-220V, OUT - DC 24V)

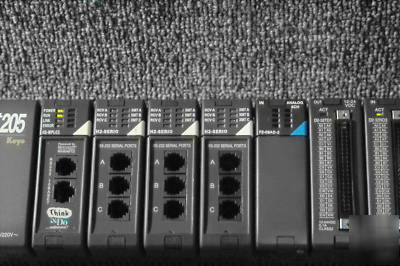

* H2-WPLC2 (RS-232, 10T ETHERNET, 4M FLASH)
* H2-SERIO (3-PCS) SERIAL I/O MODUL

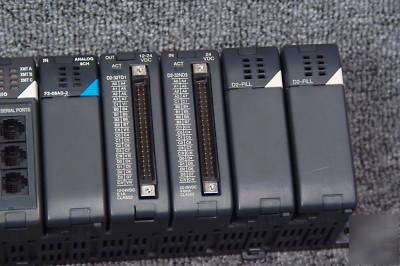

* D2-32ND3(1-PCS) 32pt, 24VDC, SINK/SOURCE INPUT MODULE
* D2-32TD1 (1-PCS) :32pt, 24VDC,0.1A,/PT SINKING OUTPUT MODULE
* F2-08AD-2 : 8CH,0-5V,0-10V ANALOG OUTPUT MODULE
Processor -Hitachi SH3 Series 7708 Processor
Pre-loaded Software Runtime engine compatible with Think & Do Studio or Think & Do Live!
Memory-64kB battery-backed RAM10Mbps
Indicators Power, Link/Act, Run, Error
Local I/O Points 256 (224 if using H2-ERM in module slot for Ethernet remote I/O)
Ethernet Remote I/O points 256 (using H2-ERM master in local WinPLC base and H*-EBC or T1H-EBC remote slave
Port 0 RJ12, 6-pin modular, serial port, supports K-sequence,
or any protocol from Windows CE
Port 1 RJ45, 8-pin modular, Ethernet 10MBPS
I/O Interface Backplane to DL205 (Up to 9-Slot base), expandable with H2-ERM
Power Consumption 680 mA at 5VDC
Manufacturer Host Automation Products, LLC.
Due to the nature of electronic components we are not able to offer a warranty or accept returns.
