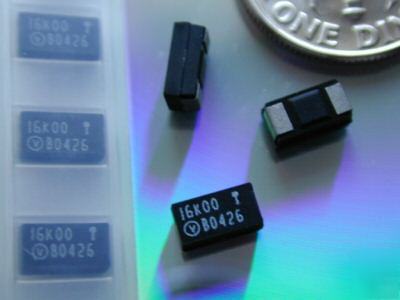

The SMR1D is a truly precision molded surface mountable resistor offering all the elements of precision; including lowest TCR, tight tolerances, long term stability, low noise, low thermal EMF, and non-measurable voltage coefficient. It utilizes the Bulk Metal Foil technology for the resistive element with its inherent and legendary low predictable TCR* and long term stability. TCR* : Temperature Coefficient of Resistance . Temperature Coefficient of Resistance - 1.8ppm/°C (+ 25°C to + 125°C) - 0.6ppm/°C (+ 25°C to + 60°C) + 0.6 ppm/°C (0°C to + 25°C); + 2.2ppm/°C (- 55°C to + 25°C) . Excellent Long Term Stability: to ± 0.005% at + 70 °C for 2000 Hours . Tight Tolerance: to ± 0.01% . Power: 0.25 watts @ + 70°C (SMR1D) . Low Thermal EMF: 0.05 μV/°C typical . Low Voltage Coefficient: 0.1 ppm/V For detail information please going to - http:// /docs/63102/smrxd.pdf (Vishay bulk metal foil precision 16K00T 0.01% 2PPM 5PCS was posted and is owned by: Jessie Davis) |
