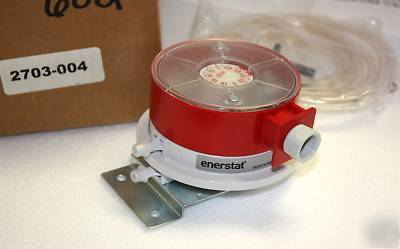

Made in Switzerland by Enerstat The Robertshaw EPC-602 Static Pressure Controller is designed for use with motorized zone control bypass damper systems and can measure static pressure down to 0.2" W.C. The control can be mounted conveniently in either a vertical or horizontal position. A bright LED (light) facilitates static pressure control set-up and confirms whether the bypass damper is powering open or closed. A single 24VAC, 20VA transformer is required to power the EPC-602 and motorized bypass damper. Wiring is made directly to lug terminals located behind the removable front cover. The EPC-602 incorporates a rotating ring with conduit connector for easy wiring. Molded of durable ABS plastic. Packaged complete with all mounting hardware, tubing and static pressure probe. Pressure range 0.2" to 2.0 W.C. (0.5 to 5.0 MBAR) Adjustable Pressure connection 0.25" I.D. flexhose (6mm I.D.) Minimum distance between contacts 0.05" W.C. (0.1 MBAR), Maximum switching current 3 Amps @ 24 VAC (Robertshaw enerstat epc-602 static pressure control was posted and is owned by: Reba Stokes) |
r.stokes@chicagopartsnetwork.com (Reba Stokes) for more information.
