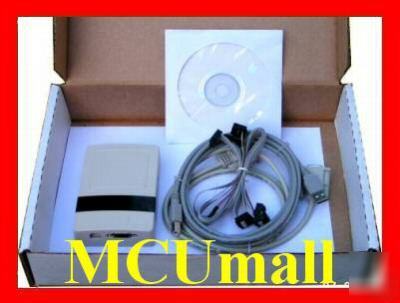

Enhanced Atmel AVR JTAG ICE Emulator+ STK500 ISP programmer 2-in-1 This Enhanced Atmel AVR JTAG ICE + STK500 ISP programmer provides the users a highly-flexible, low-cost Atmel AVR design and debug tool. It's operated by AVR Studio development software. 100% compatible with Atmel JTAG ICE Emulator. When it in JATG ICE mode, it's recognized as standard AVR JTAG ICE. When it in ISP programmer mode, it's recognized as STK500 ISP downloader. The AVR ISP programming supports most popular AVR devices. The unit is compatiable with original AVR JTAG ICE and STK500/AVRISP downloader. The AVR Studio software can be downloaded from Atmel's website. AVR JTAG ICE allows access to all the powerful features of the AVR microcontroller. All AVR resources can be monitored when debuging the firmware: Flash memory, EEPROM memory, SRAM memory, Register File, Program Counter, Fuse and Lock Bits, and all I/O modules. AVR-JTAG also offers extensive On-chip Debug support for break conditions, including break on change of Program memory flow, Program memory Break Points on single address or address range, and Data memory Break Points on single address or address range. AVR ISP feature allows user for programming all AVR devices in system. * AVR Studio operate. JTAG ICE allow user to debug the firmware which is real time running on the target board AVR MCU. User is able to step through the C or Assembly source code line by line in the AVR Studio. Because it is not a software simulation debugger, so that debug the in-circuit firmware become handy via JTAG interface. * Onboard STK500 ISP downloader feature. The STK500 ISP downloader is be able to program all the AVR chips whcih supported by AVR Studio software. So that gives user most convenience way to program the AVR chip. In AVR Studio software, it recognized as STK500 ISP downloader. * Added the USB port as power supply and communication(Virtual COM port), so that it has compact size. No external power adapter needed. * 2 in 1 feature gives use a flexibility and convenience when doing development. * It be able to upgrade the firmware from AVR Studio, so that to support latest AVR devices. * The fast ISP download. Up to 1.843Mhz ISP download frequency. * Programmable clock output port for target board. 3.69M 1.84M 1.23M 32.7KHZ * Low cost compare to the original AVR JTAG ICE along ($299+) price. Supported Device on ISP programming: AT86RF401 90CAN128 AT89S51 AT89S52 AT90PWM2 AT90PWM3 90s1200 90s2313 90s2323 90s2343 90s4414 90s4433 90s4434 90s8515 90s8535 mega103 mega128 mega16 mega161 mega162 mega163 mega165 mega168 mega169 mega32 mega323 mega325 mega329 mega406 mega48 mega64 mega8 mega8515 mega8535 mega88 mega2560 mega2561 mega3250 mega3290 mega644 mega645 mega6450 mega649 mega6490 tiny11 tiny12 tiny13 tiny15 tiny22 tiny2313 tiny22 tiny24 tiny26 tiny28 tiny45 Supported Device on JTAG ICE debuging: AT90CAN128， ATmega128, ATmega128L, ATmega16, ATmega162, ATmega162V, ATmega165, ATmega165V, ATmega169, ATmega169V, ATmega16L, ATmega32, ATmega323, ATmega323L, ATmega32L, ATmega64, ATmega64L * One 2-in-1 ICE/Programmer with latest firmware OS from AVR Studio 4 * One RS-232 Interface cable to connect to any standard PC serial port * One JTAG cable for ICE debugger * One Software CD with English user guide(pdf format) * US Postal International MoneyOrder (Enhance atmel avr jtag ice emulator + isp 2-in-1 avrisp was posted and is owned by: Angelique Holmes) |
aholmes@chicagopartsnetwork.com (Angelique Holmes) for more information.
