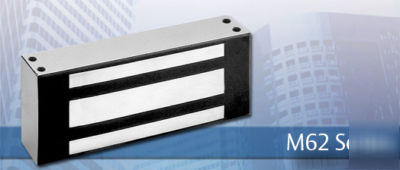

1200 lbs. Holding Force Magnalock 1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss. * Patented instant release circuit - no residual magnetism * Fully sealed electronics - tamper proof and weatherproof * Mounted using steel machine screws into blind finishing nuts * Architectural brushed stainless steel finish (US32D/630) * All ferrous metal surfaces plated to MIL specification * Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers * Ten feet [3.05m] of jacketed, stranded conductor * Automatic dual voltage - no field adjustment required * Lock options include BondSTAT magnetic bond sensor, integrated door position switch, conduit fitting, double and face mount models * Universal threaded conduit fitting is 1/2" female - 3/4" male * Split Strike Plates and Offset Strike Plates available An Offset Strike may be required for proper installation of the M62 in aluminum frame door applications. Click here for Offset and Split Strikes for Magnalocks. Holding Force: 1200 lbs. [544 kg] Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC Operating Temperature: -40 to +140F [-40 to +60C] Warranty: MagnaCare Lifetime Replacement Warranty ( securitron M62 magnalock $650 value was posted and is owned by: Sadie Beach) |
