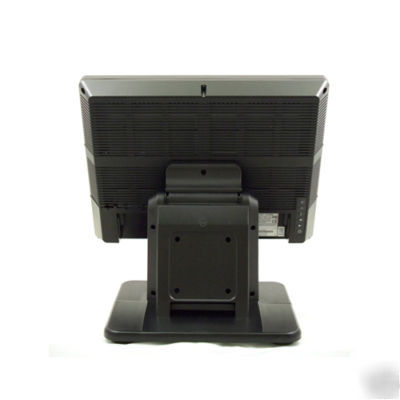

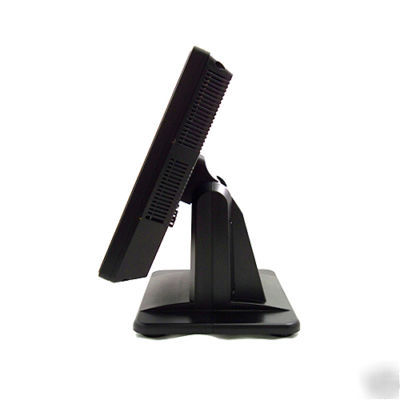

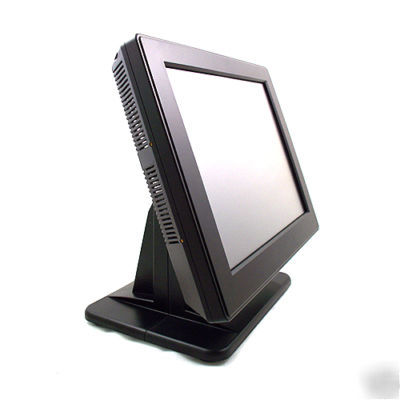

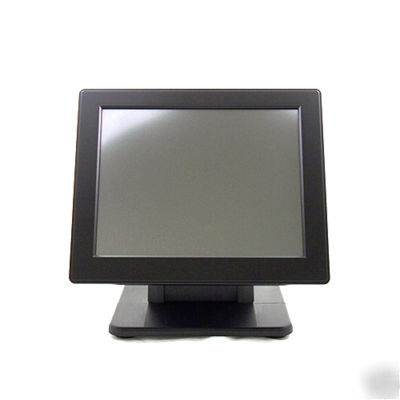

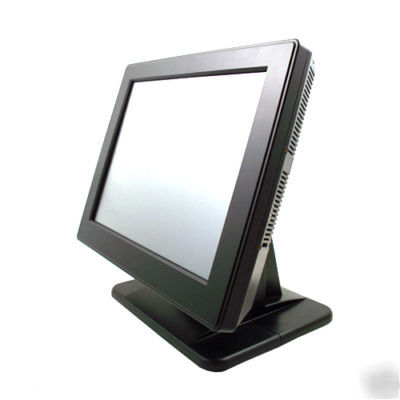

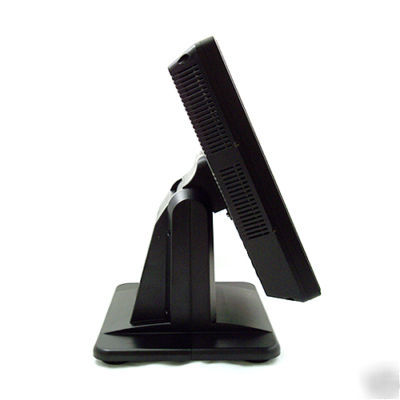

* BRAND NEW 15" 5-Wire Resistive TFT TOUCH PANEL * Model number TM150, by Lava Technology. Made in Taiwan. * Only use highest quality LG TFT Display Screen. * Tilt Angle 0 ~ 90 : Adapt to operation in any environment. * Available with different touch technology (5-wired resistive, SAW, Capacitive) * With rugged and solid base design * User-friendly manipulation * Exceptional cable management * OSD and Power Switch Control panel on the rear * With Dual VGA Interface (VGA and DVI) * Removable base and Wall Mounting Capability 75mm VESA holes * Monitor : Active Matrix TFT Display * Touch panel Five wire resistive * VESA Mount available on back side * MSR (Magnetic Stripe Reader) option available * Display area(mm) 304(w) x 228(h) * Brightness 250 -500cd/m2 ( standard) * Contrast ratio: 300-600 : 1 * Display Interface 15 injection VGA * Power supply 12V external output power supply, 3 amp * Color Black front face (Optional Silver Color, need to specified in order) * Total size : 378 x 348 x 226 mm * Working temperature 0 to 40 degree * Touch panel: 5 wire resistent(Taiwan production) * Touch panel Detail Specification: Palm rejection model available Electrical :Operation Voltage DC5V Insulation 20 Megaohms or greater / 25V (DC) Optical : Transmittance 82% +-5% Environmental : Operating Temperature -10C to +60C Storage Temperature -40C to +75C Mechanical : Activation Force 50g or less (Custom activation force and palm rejection available) Durability : Finger Touch 35M touches Surface Hardness 3H or greater Windows 95/98/2000/ME/XP/NT/CE/Vista, DOS, Linux * Touch driver support : Operating System * For other international destination : please contact us at SRobbins@chicagopartsnetwork.com If you have any question please Contact us at SRobbins@chicagopartsnetwork.com 7 Days Money Back Return Policy of Purchase there will be a 15% restocking fee. After 7 Days, there will be a 25% Restocking Fee. No return after 14days. For support information please visit http:// / (New 15" touch screen pos monitor direct from factory was posted and is owned by: Sophia Robbins) |
SRobbins@chicagopartsnetwork.com (Sophia Robbins) for more information.
