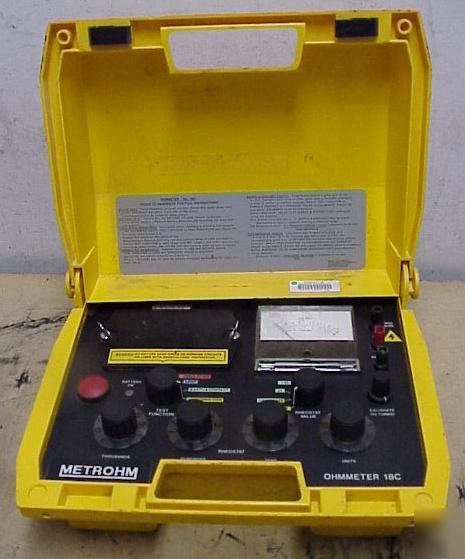

Metrohm 18C/2 Insulation Tester & Transistorised Bridge This unit has been fully tested and includes cables & manual. Included is a 14 day RTB warranty. The ohmmeter 18c can be used for a wide variety of cable fault tests. Insulation tests can be made at either 95V or 500V, with direct readings in megaohms. Conductor resistance tests may be made including loop resistance, single wire resistance and location of earth or contact fault. Disconnection tests are made using the RHEOSTAT BALANCE scale on the meter. Specifically designed to test and fault locate on telephone local loop networks. Dual Voltage Insulation Testing: 95V d.c and 500V d.c Taut band suspension meter movement Rugged, moulded case with removable lid for extra working accessibility as required Insulation Test Voltage (dual): Short Circuit Load Current on 95V: Short Circuit Load Current on 500V: 140mA maximum at 500V D.C. with a 1MW load <100W ±0.25% to +2% dependent on reading >100W ±0.25% class="default"0.1 to 9999W through contact resistance up to 1MW class="default"Battery Consumption: This item is used and has been powered up, no further tests have been performed. Wear may be evident. Local Pick up is also available at our office in Clayton South VIC 3169 with 24 Hrs Prior Notice. Building Trust in Transactons (tm) If you have any questions please contact Naing Nyunt or Phone (switch) +613 9558 0004 Ext : 138 Office Hours are 9.00AM - 5.00PM (Metrohm 18C/2 insulation tester & transistorised bridge was posted and is owned by: Iris Murphy) |
