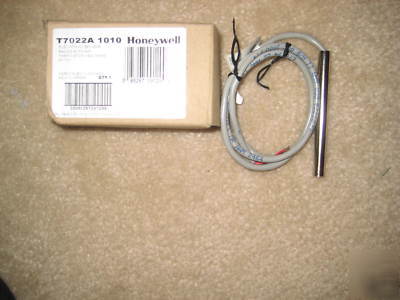

The T7022A-1010 is a remote temperature sensor that will work with a Honeywell thermostat, primarily the T7300, for the best possible results. This adjustable thermistor sensor can be mounted in a duct with the furnished bracket, or in a light troffer with two rubber grommets if proper spacing is available. Mounting can be directly in the return-air passage or in an air-sampling box. This unit can also be applied for individual zone control with use of an electronic motor. The T7022A1010 will only benefit your thermostat needs! * Sensor Type: 1420 ohms at 75 Degrees F * Appplication: Remote Temperature Sensors For Use With T7300 Thermostats * Insertion Length: 2.75 Inches, 70 mm * Operating Temperature Range: 60 To 90 Degrees F (16 To 32 Degrees C.) * Dimensions: 3/8x2 3/4 Inches Long * Primary Use Is With The T7300 Programmable Commercial Thermostat * Must Be Mounted In A Duct With The Furnished Bracket, Or In A Light Troffer With Two Rubber Grommets * Wiring: Can Be Run With Class 2 Wire In Accordance With The National Electrical Codes * Monitors Temperatures For Exact Information * Can Be Used With Other Applications For Individual Zone ControlConduit And/Or Shielding Are Not Necessary For Satisfactory Operation Additional Product Information Check out my other items!Be sure to add me to your favorites list! (Honeywell T7022A 1010 electronic sensor range 60 to 90F was posted and is owned by: Elisabeth Tillman) |
