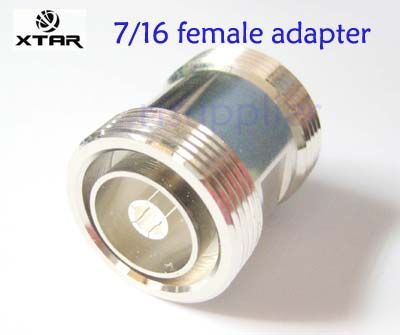

2 pcs L29 7/16 DIN female to female adapter L29 7/16 DIN female to female adapter Temp.range.........................................-40 +85 C Vibration..............................................100m/s2 (10 500Hz) Impedanec.............................................50 Frequency Range...................................DC 7.5GHz Working Voltage....................................2700V max Withstand Voltage........... .......................4000V rms Center Contact....................................... 0.4 m Outer Contact........................................ 1.5 m Insulation resistance................................ 10000 M Average power .......................................3KW max Insertion loss ........................................0.15dB (7.5GHz max) VSWR Straight....................................... 1.10 Right angle ............................................ 1.25 Intermodulation 3rd order at 2x20w.......... 160 dBC typ Durability(mating).................................... 500 (cycles) shell ......................brass ...........................silver or CuSnZn3 plated contact pin ........... .brass ...........................gold plated socket ...................beryllium or tin brass.......gold or silver plated elastic contact........ beryllium or tin brass ......silver or CuSnZn3 plated insulator.................PTFE or PE......................nickel plated crimping suite..........copper alloy O-ring sealing .........6146 silastic (2PCS L29 7/16 din female to female adapter was posted and is owned by: Thelma Joyner) |
T_joyner@chicagopartsnetwork.com (Thelma Joyner) for more information.
