TC9401, voltage-to-frequency converter, v/f & f/v (2)


TC9401, voltage-to-frequency converter, v/f & f/v (2)
Voltage-to-Frequency Converter

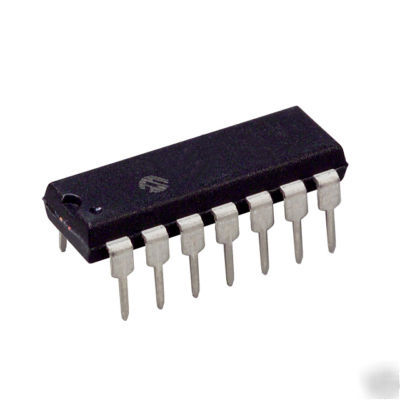

TC9401CPD, Voltage-to-Frequency/ Frequency-to-Voltage Converters, 14 pin DIP, Quantity 2, MICROCHIP.
The TC9401 is a low-cost voltage-to-frequency (V/F)converter utilizing low power CMOS technology. The converters accept a variable analog input signal and generate an output pulse train whose frequency is linearly proportional to the input voltage. The devices can also be used as highly-accurate frequency-to-voltage (F/V)converters,accepting virtually any input frequency waveform and providing a linearly-proportional voltage output. A complete V/F or F/V system only requires the addition of two capacitors,three resistors,and reference voltage.
-DC to 100 kHz (F/V)or 1Hz to 100kHz (V/F)
-Low Power Dissipation: 27mW Typ.
-Single/Dual Supply Operation: +8V to +15V
-Gain Temperature Stability: 25 ppm/ C Typ.
* Analog-to-Digital Converters
* Analog Data Transmission & Recording
* Frequency Meters/Tachometer
