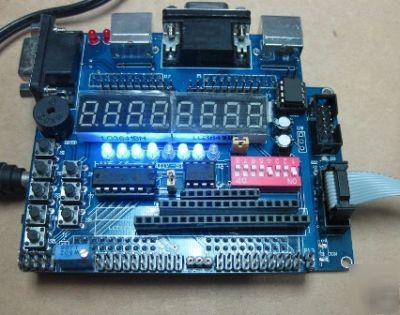

NIOS FPGA development board altera development board Cyclone_II_EP2C8, based on EP2C8Q208C8, configuration, EPCS4 EPCS4 chip, the core board and interface board, abundant resources, the function is strong. [function and characteristics] Using double PCB design, through professional PCB flying probe test, stable and reliable, and power circuit are part of PLL PI, reference ZhouLiGong filtering processing experimental design, USES the high cost of tantalum capacitors do power filtering processing! Stable and reliable performance, structure, beautiful. Support the FPGA development, NIOS II development, all can lead directly from the board, user-friendly, obligate PLL resources, The core board suitable product prototypes of rapid development, the students to attend electronic design contest, the study of FPGA design technology, etc, and the SOPC used the rapid assessment Routines using modular design scheme, simple, easy to use. Each module of the routines in future development projects, can use in direct accelerated the speed of system construction project, The introduction of configuration. Altera: Cyclone_II EP2C8Q208C8 FPGA chips Download debugging interface: AS JTAG, debugging interface Raises IO number: 80, are independent of IO nonexistent port, for beginners reuse provide 5v power input, contain diodes prevent noninverting input protection, Provide an SRAM (extended IS61LV25616AL - 10TL) interface, 256kSRAM, if need to develop such high-speed video data processing, usually with an SRAM is more appropriate Support interface board, can complete VGA, PS2, UART, digital tube experiments Interface board resource list: -The FPGA development board altera Cyclone_II_EP2C8 NIOS development board -Data CD with demo code and software (Nios fpga board fpga EP2C8 development board was posted and is owned by: Priscilla Simpson) |
