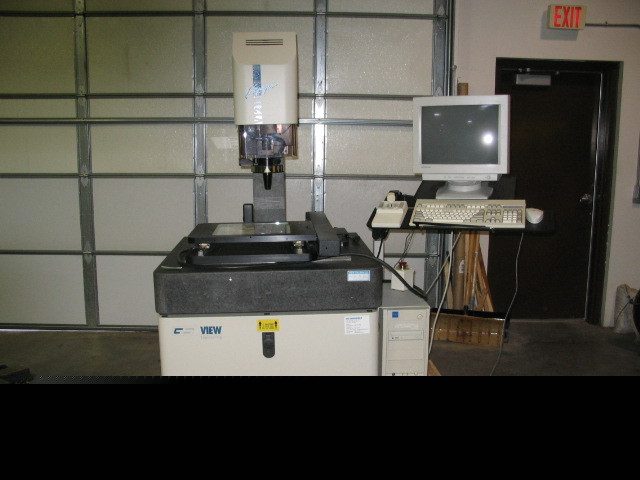

View Engineering CCM Metrology System Voyager 12x12 * Measuring Accuracy (at 20 C) U2 (XY plane) = (2.0 + L/200) m * U1 (Z-axis) = (1.5 + L/50) m * [Where L = measuring length in mm. All specifications apply to a thermally stable machine and artifact at 20 C +/- 0.5 C using a 6.6x objective lens.] * Measuring Range: 300 x 300 x 150mm (12 x 12 x 6") * Resolution: 0.1 m (0.000004") * Stage Drive System: DC servo motor drives * Stage Drive Velocity: 254 mm per/sec * Stage Drive Acceleration: 508 mm per/sec2 * Stage Error Mapping: Non-linear 2D error corrections in XY plane * Load Capacity: 25kg (55 lbs.) * Optical System: Standard: Fixed, flat field objective lenses * Optical Magnification: Standard: 6.6x (200x on-screen magnification) * Optional: 1.0x-150x (up to 4200x on-screen magnification) * Illumination Standard: Backlight and coaxial surface illumination. * Optical Sensor: Digitally processed instrument quality monochrome CCD camera with 756 x 581 pixel array. * Image Processing: 256, 8-bit, grayscale gradient processing with 5:1 50:1 subpixeling (application dependent). Programmable filtering and outlier point removal. Continuous point edge finders, area centroid, histogram, blob (defect), and autofocus tools. High-Performance Floor Stand Metrology System The View Voyager Model V12x12 is the highest performance non-contact, automated dimensional metrology system available today. In all critical areas - accuracy, repeatability, reproducibility, inspection throughput, programmability, machine-to-machine correlation, and reliability - the system delivers for the most demanding applications. Integrating industry-leading image acquisition and processing tools, powerful measurement software, patented lighting and auto-focus technologies, and non-contact laser displacement probe technologies with precision sub-micron motion control, the V12x12 is a truly high-end metrology platform. * Fast, accurate, & reproducible. * Fully automatic operation. * Windows operating system-easy to program and use. * Supports a wide range of advanced lighting, optics, & laser technologies. * Powerful View Metrology Software options. * Industry leading gage R&R performance. PLEASE NOTE - The manufacturer requires a software upgrade which costs about $15,000. This machine qualifies for ISO 9000 with the upgrade. (View engineering ccm metrology system voyager 12X12 was posted and is owned by: Ethel Sawyer) |
ethel.sawyer@chicagopartsnetwork.com (Ethel Sawyer) for more information.
