Toshiba n-channel power igbt, 15A 1200V, #MG15N1BS1


Toshiba n-channel power igbt, 15A 1200V, #MG15N1BS1
Toshiba N-Channel Power IGBT Module,

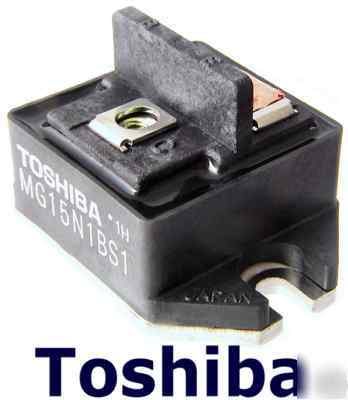

These are Toshiba N-Channel Power IGBTs (Part# MG15N1BS1) rated at 15A IC and 1000V VCES.
3. Battery DC Power Supplies
4. DC Power Supplies for Control Panels
5. General DC Power Equipment
2. High Speed, tf = 1.0us max., trr = 2.0us max.
3. Low saturation voltage, VCE(SAT) =5.0V max.
5. The electrodes are isolated from the case
How to read Toshiba MG Series Part#s :
* However some N parts appear to be 1000V and not 1100V
The MG15N1BS1 has the following main specifications,
125 W (collector power dissipation)
