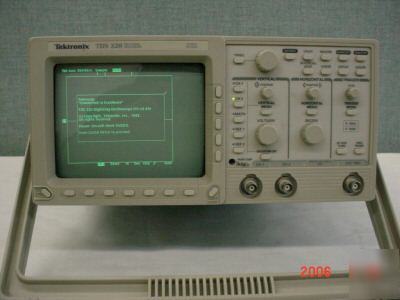

TDS320 2 Ch 100MHz 500 MS/s Digitizing Oscilloscope This low cost digitizing oscilloscope offers a 100MHz bandwidth, 500MS/s sample rate, 2 channels, and 2mV to 10 v/div sensitivity. With acquisition modes: sample, envelope, average and peak detect, the TDS320 Digital Storage Oscilloscope captures glitches as narrow as 10 ns using hardware at all time/div settings between 25 µs/div and 2.5 s/div. A record length of 1000 sample points per channel and a time/division range of 5 ns to 5 s/div help make this scope ready to perform your measurement needs. * Frequency Range/ Bandwith 100 MHz * Max. Vertical Sensitivity 10 V/div * Min. Vertical Sensitivity 2 mV/div This item includes Power Cord, no probe * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (TDS320 2 ch 100MHZ 500 ms/s digitizing oscilloscope was posted and is owned by: Franklin Whitehead) |
Franklin.Whitehead@chicagopartsnetwork.com (Franklin Whitehead) for more information.
