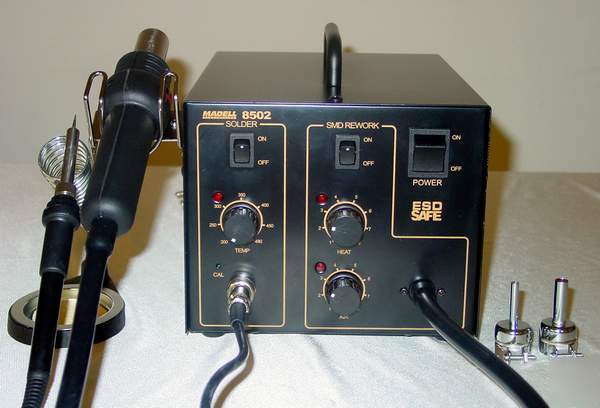

EscrowUnlt © AP6.0Still in the box new soldering station MADELL 8502, with 8 nozzles, for both through hole and surface mount componets. * Compact system. Comes with a sharp tip regular soldering iron for fine pitch chips, a hot air gun with eight(8) nozzles for surface mount components. * Built in air pump. No need for external compressed air source.Strong hot air pump. * More powerfull soldering iron than 936. * Temperature and air pressure controlled seperately. * Hot air temperature: 100°C to 480°C. * Iron temperature: 200°C to 480°C. * Power consumption: 360W(Max). * Nozzles included: A1125(10x10mm QFP),A1126(14x14mm QFP),A1127(17.5x17.5mm QFP),A1128(14x20mm QFP),A1130(4.4mm round),A1131(4.4x10mm SOP),A1132(5.6x13mm SOP),A1170(7.2mm round). * Total 31 hot air nozzles available at additional cost. The nozzles are exchangable with Hakko and other hot air soldering stations. * One year warranty applies. Repair service or replacement is done by us. Test it in our Los Angles showroom. Call (***)670-9023 to make arrangement. Local pick up welcome. (Smt/smd/hot air rework station, 8502+8 tip was posted and is owned by: Glenda Willis) |
GlendaWillis@chicagopartsnetwork.com (Glenda Willis)
for more information.
