Up to 1 ghz rf zero bias schottky diode detector


Up to 1 ghz rf zero bias schottky diode detector

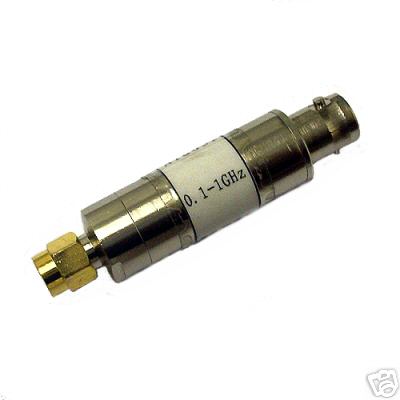

Up to 1 GHz RF Zero Bias Schottky Diode Detector Specifications:
Frequency Range: DC to 1GHzSensitivity: 0.08 mV/µWInput Signal: 150mW Max
Input Impedance: 50 Om (SMA Male Connector)Output Impedance: 3~20 kOm (BNC Female Connector)Output Polarity: Negative
- Miniature size and light weight.
- Effective design is ideal for wireless, cellular, and other RF applications.
- Superior connectors which mate non-destructively with connectors per MIL-C-39012.
- Artificially aged for high stability under normal as well as extreme operating conditions.
- Supplied in a unique and high quality packaging.
This RF coaxial detector provides superior performance covering frequencies from DC up to 1GHz. Typical applications include: general laboratory, power meters, frequency synthesizers, signal generators, and various microwave systems for both military and commercial. The key specifications are low level sensitivity, high accuracy, long term repeatability, and long life.
If you have any additional questions or concerns of any kind, please do not hesitate to contact us. We work hard to bring you the information you request in a timely manner and for that reason you can expect a response to your inquiry within 24 hours. We work Monday - Friday from 8:00am to 19:00pm (GMT). Requests that enter our system during the weekend will be responded to as soon as possible the following Monday.
