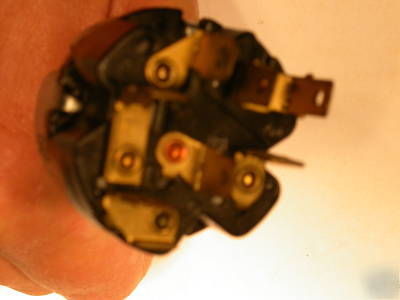

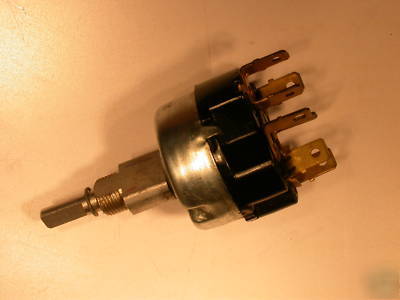

Rotary switch - p/n 304104 - nsn 5930-00-144-4994


Rotary switch - p/n 304104 - nsn 5930-00-144-4994
Cross Reference # F52LHTA5M-82, M12630NM82, MS21086-08, MT13S832CPC, R300X08
Used but in Excellent Condition
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
QQ-P-416, TY 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
0.235 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
PREVAILING TORQUE ALL METAL DESIGN
MOUNTING HOLE ARRANGEMENT STYLE
0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER
0.229 INCHES MINIMUM AND 0.239 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH
0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
