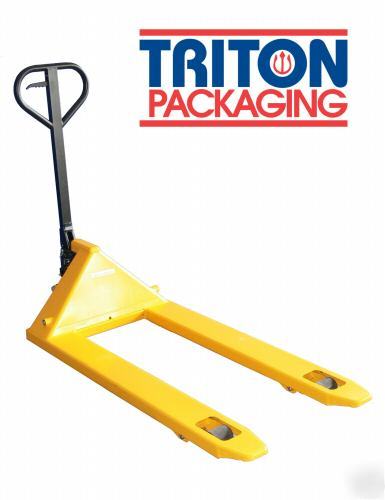

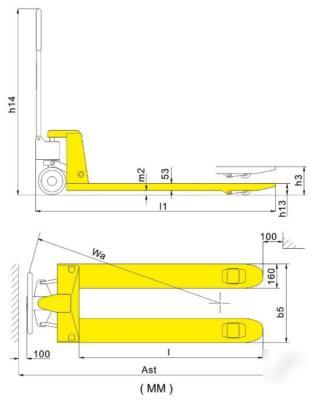

New - Pallet Jack Hand Truck 6600 Lbs (3000 Kg) To Move Heavy Pallets with Ease and Precision * Capacity: 6,600 Lbs (3000 Kg) * Fork Length: 45 inches (1150 mm) (*l) * Fork Width: 6.3 inches (160 mm) * Total Truck Width: 28 inches (685 mm) (*b5) * Maximum Lift Height: 7.7 inches (195 mm) (*h3) * Fork Height (When Lowered): 3 inches (75 mm) (*h13) * Handle Height 48 inches (1222 mm) (*h14) * Overall Length: 60 inches (1520mm) (*l1) * Aisle Width for pallets 40x47 inches (1000x1200 mm) crossways: 68 inches (1720 mm) (*Ast) * Aisle Width for pallets 30x47 inches (800x1200 mm) lengthways: 70 inches (1770 mm) (*Ast) * Steering Wheel: 7 inches (180 mm) * Fork Wheel Single: 3 x 4 inches ( 74 x 93 mm) * Fork Wheel tandem: 3 x 2.75 inches ( 74 x 70 mm) * Front Wheel Diameter: 3 inches (74 mm) * Turning Radius: 50 inches (1265 mm) (*Wa) * Polyurethane Wrapped Iron Wheels * Meets T V Rheinland / Gepr fte Sicherheit / Conformit Europ enne (TUV/GS/CE) Standards. Package Size: 64 inches (1626mm) x 40 inches (1016mm) x 21 inches (533mm) Package Weight: 160 Lbs (73 Kg) (Pallet jack 6600LBS 3000K - pallet truck standard duty was posted and is owned by: Stanley Compton) |
StanleyCompton@chicagopartsnetwork.com (Stanley Compton)
for more information.
