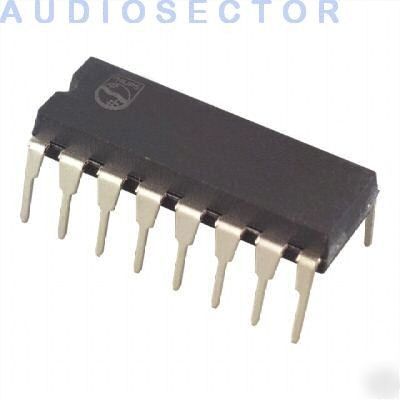

Digitally Controlled Analog Volume Control DIGITALLY-CONTROLLED ANALOG VOLUME CONTROL Two Independent Audio Channels WIDE GAIN AND ATTENUATION RANGE +31.5dB to 95.5dB with 0.5dB Steps 0.0004% THD+N at 1kHz (U-Grade) 0.0002% THD+N at 1kHz (A-Grade) POWER SUPPLIES: 5V Analog, +5V Digital AVAILABLE IN DIP-16 AND SOL-16 PACKAGES PIN AND SOFTWARE COMPATIBLE WITH THE CRYSTAL CS3310 The PGA2311 is a high performance, stereo audio volume control designed for professional and high-end consumer audio systems. Using high performance operational amplifier stages internal to the PGA2311 yields low noise and distortion, while providing the capability to drive 600 loads directly without buffering. The 3-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2311 devices. (PGA2311 digital stereo audio volume control lo noise X4 was posted and is owned by: Craig Jefferson) |
