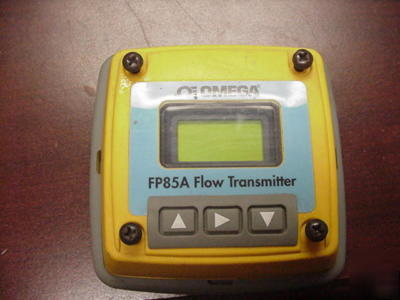

The FP85A microprocessor-based signal conditioner provides the ultimate in system flexibility and convenience, with simultaneous 4-20 mA and open collector pulse integrally mounted to FP8500 series paddlewheel sensors utilizing an mounting kit. The FP85A can also be remotely mounted, either on a panel (front mounted, utilizing the included captive self-tapping screws to thread into the panel wall) or on a pipe, wall, or tank with a universal mounting kit. The FP85A can be The three front keys control all programming and scaling of the FP85A there are no pots to tweak or internal adjustments to make. Simply enter the K-factor, and the field-adjustable decimal point, mA output value, total (field selectable for resettable or non-resettable operation), and the date of the last program step in clear language, allowing display in any engineering units and timebase in seconds, minutes, hours, or days. A special pushbutton sequence permits entry unauthorized reprogramming. The 20.00 mA output calibration signal for scaling remote readout devices. The front panel of the FP85A is captive silicone gasket ensures moisture resistance in all mounting Shown Smaller Than Actual Size For all-plastic units with PVDF shaft, add suffix Integral mounting kit, for mounting on top of FP85XX sensors Integral mounting with 1 2" NPT conduit ports Same as FP85NM, with PG13.5 threaded DIN conduit ports Universal mounting kit, for remote mounting on pipe or wall Universal mounting with 1 2" NPT conduit ports Same as DP85UNM, with PG13.5 threaded DIN conduit ports Comes with complete operator s manual. signal conditioning module with 4-20 mA and pulse outputs, FP8501A, paddlewheel flow sensor for 1 2" or 4" pipe with a polypropylene body, plus integral mounting kit with 1 2" NPT conduit port, $371 + 216 + 46 = $633. Fitting required; see pages F-63 and F-64. polypropylene, with silicone rubber (captive) gasket and 8-32 self-tapping 8-digit alphanumeric dot matrix Programmable module with 4-20 mA and pulse outputs Sensors for integral mounting (requires FP85NM or FP85DM integral 1 2" to 4" pipe, polypropylene body/titanium shaft 5" to 8" pipe, polypropylene body/titanium shaft 1 2" to 4" pipe, PVDF body/Hastelloy C shaft 1 2" to 4" pipe, all PVDF material (Omega FP85A flow transmitter was posted and is owned by: Kitty Hodges) |
