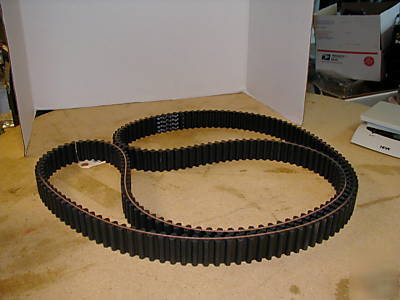

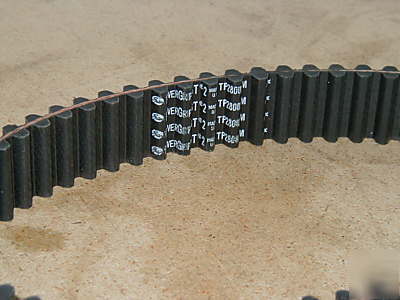

Industrial Power Transmission -> Synchronous Belts -> PowerGrip GT 2 Twin Power Belts -> 14mm Pitch, P.N. Series 9232 -> 40mm Wide Belt capacity is equal to standard single-sided PowerGrip GT 2 belts. Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation. Neoprene body provides protection against grime, grease, oil, and moisture. Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives. Gates Twin Power belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of belt. PowerGrip GT 2 Twin Power belts are ideal for serpentine applications requiring rotation reversal or synchronization of driven shafts. Ideal for use in industries such as textile, paper, packaging and printing. Twin Power belts have teeth on both sides to provide synchronization from both driving surfaces. If you currently use PowerGrip HTD Twin Power belts, consider PowerGrip GT 2 Twin Power belts at reduced widths to lower your costs. Belt pitch is the distance in millimeters between two adjacent tooth centers as measured on the pitch line of the belt. Belt pitch length is the total length (circumference) in millimeters as measured along the pitch line. The theoretical pitch line of a PowerGrip GT 2 Twin Power belt lies within the tensile member. PowerGrip GT 2 Twin Power part numbers are comprised of pitch, pitch length and width. For example; part number TP4400-8MGT-30 denotes a TP for Twin Power, 4400mm pitch length, 8mm pitch and 30mm width. (Gpt-TP2800-14MGT-40 powergrip gt 2 twin power belt was posted and is owned by: Marcie Harrison) |
Marcie_harrison@chicagopartsnetwork.com (Marcie Harrison) for more information.
