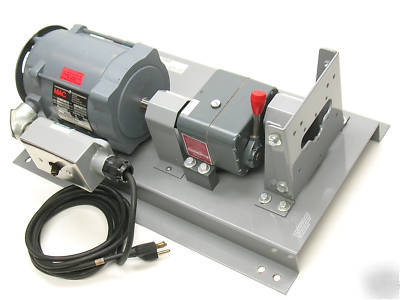

ITEM: MASTERFLEX/COLE-PARMER (Sold by Cole-Parmer as Model# EW-07583-50 and the pump has a Cole-Parmer label. Cole-Parmer sells the Masterflex line of pumps which are made by Barnant Co., and both Barnant and Cole-Parmer are divisions of Thermo Fisher Scientific) Model# 7583-50 I/P Variable-Speed Hazardous-Duty Pump Drive, Adjustable Between 10-430 RPM (10-430 is Cole-Parmer's rating, this unit was TESTED in actual operation and works down to 2 RPM and up to about 450 RPM), 115V AC 60Hz., accepts MASTERFLEX L/S and MASTERFLEX I/P pumps UP TO a TOTAL of 3 MASTERFLEX L/S heads or 2 MASTERFLEX I/P heads, w/ MAC Model# W1502-3 AC Motor, 115V 60Hz, 1/4HP, 1725 RPM, UL Listed Suitable for Hazardous Locations: Class I, Div. 1, Group D, Operating Temperature Code T3, w/ ZERO-MAX Model# JK2 Lever-Controlled Variable Speed Drive Block, w/ Integrally Mounted Toggle-Type ON-OFF Switch, 10-Foot Power Cord w/ Standard US 115V Three-Prong Grounded NEMA 5-15P Plug, Entire Assembly Mounted on Heavy-Duty Steel Baseplate, INCLUDES Masterflex 7583 Hazardous Duty Pump Drives Operating manual on CD. WHAT THE MANUFACTURER STATES ABOUT THE CURRENT PRODUCT: "The Hazardous Duty MASTERFLEX Drive System Model 7583-50 consists of a fixed speed 120V, single phase, 60 Hz motor, a variable mechanical speed reducing control, and a pump mounting bracket with the appropriate drive adapters for MASTERFLEX L/S and MASTERFLEX I/P pumps. In addition to the first L/S or I/P head used, a maximum of two MASTERFLEX L/S or one MASTERFLEX I/P add-on pump heads is recommended (for a TOTAL of 3 MASTERFLEX L/S heads or 2 MASTERFLEX I/P heads). The pump mounting plate will accept all MASTERFLEX L/S and MASTERFLEX I/P Pump Heads with standard (short) shafts. Additional MASTERFLEX Pump Heads with standard (short) shafts may be used in tandem. The pump speed can be varied from 10 to 430 rpm. The pump rotates in one direction only, clockwise." - Use either L/S or I/P pump head on drive. L/S flow rate: 0.6 to 2500 mL/min; I/P flow rate: 60 to 8800 mL/min. Flow rate depends on drive rpm and tubing size. NOTE: The rubber coupling sleeve and coupling drive adapters for the I/P and L/S heads are not included. - Hazardous-duty drive for hazardous locations where special electrical precautions are necessary. 115 VAC motor: UL-listed for Class 1, Division 1, Group D hazardous locations. - Fully mechanical speed control adjust with lever then lock setting. Mechanical control is inherently safer from sparking than electrical control. - Power switch and line cord are not included. Safely connect power using your own protected connections. - Drives accept ten different pump head types. L/S Pump Heads: Standard, EASY-LOAD, EASY-LOAD II, QUICK LOAD, High-Performance, Cartridge, PTFE-Tubing, PTFE-Diaphragm; I/P Pump Heads: Standard, and EASY-LOAD. RPM: Variable, Adjustable: 10 to 430 I/P: Standard, Easy-Load, High-Performance L/S: Standard, Quick Load, Easy-Load, Easy-Load II, High-Performance, Cartridge Dimensions: 19"L x 12-1/2"W x 8-3/4"H (48.3 cm x 31.8 cm x 22.3 cm) SOLD ELSEWHERE FOR APPROX.: $2,300 CONDITION: Surplus NEW, no box, with a VERY FEW EXTREMELY MINOR SCRATCHES, had been installed on a portable cart base so it has a set of mounting holes additional to the original, TESTED in actual operation: operates down to 2 RPM (timed by watch) and up to about 450 RPM as measured w/ an analog tachometer. SOURCE: From a cancelled project at a large pharmaceutical manufacturing facility, surplus to their ongoing operations. (Masterflex 7583-50 l/s i/p varibl speed pump drive 115V was posted and is owned by: Rosemarie Mosley) |
r_mosley@chicagopartsnetwork.com (Rosemarie Mosley) for more information.
