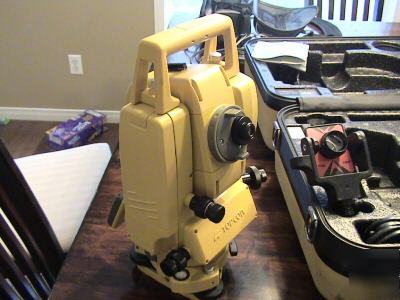

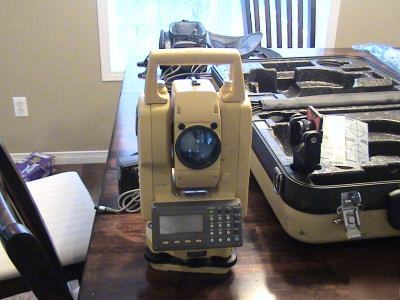

Surveying equipment -topcon cts-3007 total station


Surveying equipment -topcon cts-3007 total station

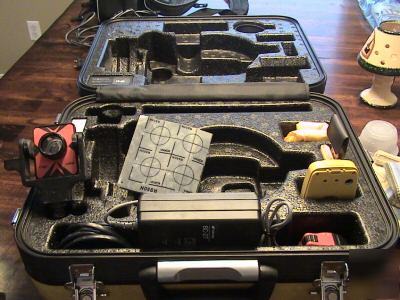

Brand New used only a few times, Too much equipment for what it was needed for. The pinpoint reflectorless measurement function will increase the productivity and flexibility of your measurements. Use a prism or not, it’s up to you. Utilize the CTS-3007 Total Station to help you keep control on the job site. Replace lost or disturbed stakes, or use it to make spot measurements for elevations. Use with ease the onboard software or with the hand-held collector(not included). Accuracy +/- 3mm with the prism and +/- 10mm without. Includes; Additional battery and charger, Mini-Prism, Tripod and Storage case
9900 ft, 3000 meters (not included)
6.6 - 4,920 ft, 2 - 1,500 meters (included)
6.6 - 8,200 ft, 2 - 2,500 meters (not included)
5 - 820 ft, 1.5 - 250 meters (standard)
Full Specs_____________________________________________________________________________________________
6.6 - 4,920 ft, 2 - 1,500 meters
6.6 - 8,200 ft, 2 - 2,500 meters
±(3mm+2ppmxD*)m.s.e. fine, ±(10mm+2ppmxD*)m.s.e. coarse
±(10mm) m.s.e. fine(3-25m), ±(3mm+2ppm) m.s.e. fine(25m or more), ±(10mm+2ppm) m.s.e. coarse
0.2mm(0.001ft.) / 1mm(0.005ft) fine, 1mm(0.005ft) / 10mm(0.02ft.) coarse, 10mm(0.02ft.) tracking
1mm:1.2 sec.(Initial 3.0 sec.)/0.2mm:3.0 sec (Initial 4.0 sec.) fine, 0.5 sec.(Initial 2.5 sec.) coarse, 0.3 sec.(Initial 2.5 sec.) tracking
up to 2 sides horizontal, up to 2 sides vertical
3x Magnification, 0.5m to infinity Focusing Range, Erect Image, 5° Field of View
LD (Visible Laser) light source, 633nm wave length, 1mW Maximum output, Class 2 (IE Publication) / Class II (FDA/BHR 21 CFR 1040) class
LD (Visible Laser) light source, 690nm wave length, 1mW Maximum output, Class 2 (IE Publication) / Class II (FDA/BHR 21 CFR 1040) class, provided point guide
13.2 x 7.2 x 6.9 inches, 336 x 184 x 174 Millimeters
Instrument Weight(with battery)
-20° to +50° Celsius, -4° to +122° Fahrenheit
4.2 hours including distance measurement, 45 hours Angle measurement only
+10° to +40° Celsius, +50° to +104° Fahrenheit
