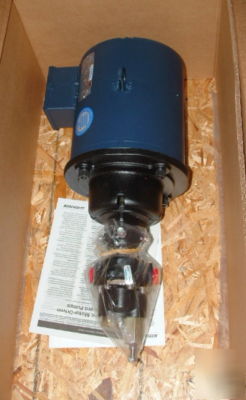

SHERTECH24 GPM GEAR PUMP WITH 3 HP MOTOR 230 / 460 VOLT - 3 PHASE - 1725 RPM SERIES GMCV6VC73MODEL # GMCV6VC73 MSRP: $1600+ THIS PUMP APPEARS TO BE A NEW SURPLUS ITEM IN FACTORY BOX WE OPENED THE BOX TO INSPECT AND FOUND THE PUMP TO BE IN PERFECT CONDITION Shaft Seal: Viton Mech Seal w/ carbon on ceramic faces Port Size: 1" FNPT Inlet/Outlet Ports, & Pressure Relief Valve Motor: 3 HP, 1725 RPM, 230/460 Volt, 3 Phase, USES: Shertech self-priming, positive displacement, external rotary gear pumps operate bi-directionally (reversible) and provide nearly pulse less flow for a wide range of industrial, marine, agricultural, and commercial chemical-duty applications. Mounted directly to NEMA frame AC Open Drip-Proof (ODP) motors using an easy-installation package. DESIGN: Pump parts are constructed of cast iron, steel, stainless steel (17-7, 303 and/or 18-8), vellumoid, carbon, ceramic and Viton. Specifically designed to be used with oil-based fluids, not to be used with water-based fluids. Pumps include steel spur gears with steel shafts and cast iron shaft support. Standard integral safety pressure relief valve is included. (we do not sell these without the Relief Valve) Uses: For use with non-particulate and non-abrasive fluids compatible with pump construction component materials. VISCOSITY: Standard pump models (at 1750 RPM) will handle viscosity up to 500 SSU. For 1000 - 10,000 SSU use 900 RPM PRESSURES: Maximum pressure to 125 PSI and working casing pressure to 200 PSI. *Maximum Inlet Booster Pressure is 50 PSI (gears will start to flex if pressure on the inlet side exceeds 50 PSI, SELF PRIMING: Max. Suction Lift of 19.5 feet a 1750 RPM, and 8.1 feet at 900 RPM. Suction lift requires wetted gears and primed TEMPERATURES: Recommended for liquid temperatures from 32 to 280 F. (standard Viton seal) Do not use this pump for flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do not use in flammable and/or explosive atmospheres. When pumping hazardous or dangerous materials, use only in a room or area designated for that purpose. For your protection, always wear proper clothing, eye protection, etc. in case agencies (fire dept., etc.). Failure to comply with this warning could result in personal injury and/or property damage. 313 Seaboard avenue (Rear Bldg.) (Shertech 24 gpm gear pump w/ 3 hp motor 230 / 460V 3 ph was posted and is owned by: Raquel Guthrie) |
