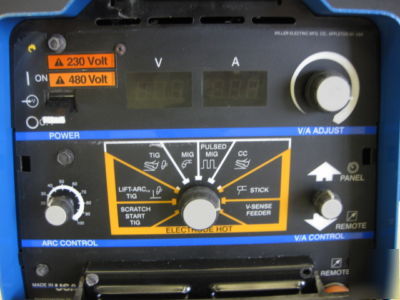

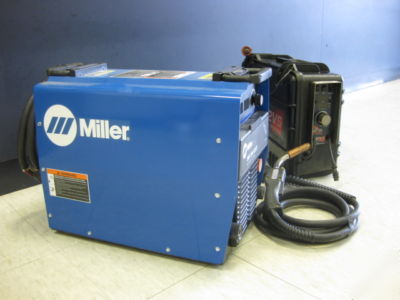

Miller xmt 304 cc/cv and 12VS feeder mig package


Miller xmt 304 cc/cv and 12VS feeder mig package
300 Amps Output at 32 Volts, 60% Duty Cycle
Lightweight, Compact, Portable
Excellent performance for most welding processes including pulse MIG and TIG with optional Optima and Intellitig-4 controls. Runs on either 208-230/460 Volt.
Multiprocess Welders and Paks - Specifications
Rated CC Output: 300 A at 32 VDC, 60% duty cycle,
225 A at 29 VDC, 60% duty cycle,
DC Voltage Range: 10 - 35 V Rated Three-Phase Input Current at 300 A, 32 VDC, 60% duty cycle: 30.5 amps at 230 V, 18.9 amps at 460 V, 15.2 amps at 575 V
Rated Single-Phase Input Current at 225 A, 29 VDC, 60% duty cycle: 47.4 amps at 230 V Weight: 76 lb (34.5 kg)
Dimensions: H: 17" (432 mm) W: 12.5" (318 mm)
Used 12VS Extreme Feeder Details
For MIG and Flux-Cored Welding
Operates on Arc Voltage and Open Circuit
Voltage-Sensing Control Circuit with CC/CV Switch

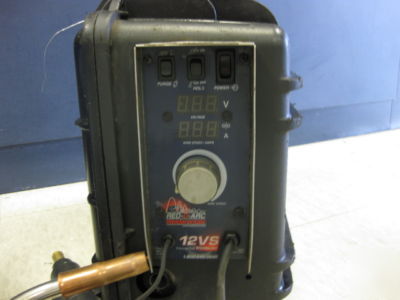

New polypropylene case with built-in side rails and the ability to open the door to change wire with feeder in vertical position. Digital meters with SunVision technology are standard for voltage and wire speed, and can also display amperage if desired. Meters can be seen clearly even in direct sunlight. Potted and trayed main printed circuit board for the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. Improved contactor and overall duty cycle for high-amperage applications (425 A at 60%). Trigger hold, wire jog, and gas purge are all located on the front panel. Wider voltage range for small and large wires with no contactor chatter or arc outages. New double-filtered gas valve.
12VS Extreme Wirefeeder - Specifications
Wire Feed Speed: 50 - 780 IPM (1.3 - 19.8 m/min)
Welding Circuit Rating: 425 A at 60% Duty Cycle
Input Power: Operates on OCV and arc voltage 14 to 48 VDC
Wire Diameters: .023 - 5/64" solid, .030 - 5/64" flux-cored
Maximum Spool Size: 45 lb (20.4 kg), 12" (305 mm)
Dimensions: H: 21" (533 mm) W: 9" (229 mm)
This used 12VS Extreme Feeder as been tested, calibrated, and includes a 30 day warranty.

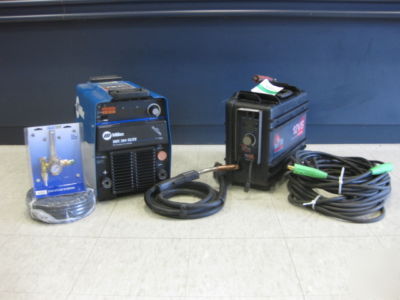

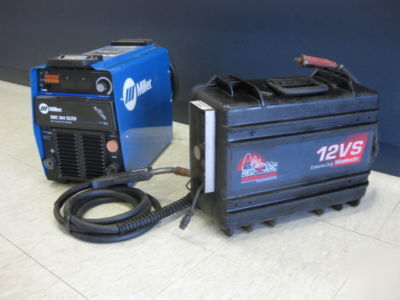

This is a complete package that includes the following: XMT 304 Power Source, 12 VS Extreme Feeder, 50FT of cable, Gas Hose, and Flowmeter. All you need to weld is to add gas and wire.
Please email with any questions. Limited quantities available.
(Miller xmt 304 cc/cv and 12VS feeder mig package was posted and is owned by: Susan Hubbard)
Contact: S-hubbard@chicagopartsnetwork.com (Susan Hubbard) (actual email hidden)
Contact S-hubbard@chicagopartsnetwork.com (Susan Hubbard) for more information.
