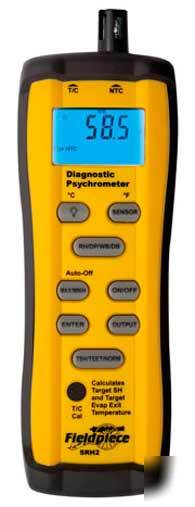

Fieldpiece SRH2 Diagnostic Digital Sling Psychrometer
The SRH2 Diagnostic Digital Psychrometer is a digital sling psychrometer that also calculates target superheat and target evaporator exit temp (also known as temp drop, temp split and delta T.)
The SRH2 Diagnostic Psychrometer is an easy to use hand-held diagnostic instrument that performs the normal functions of a digital psychrometer plus it calculates critical air conditioning system targets from psychrometric measurements.
* Measures temperature (DB) and %relative humidity (%RH)
* Calculates wet bulb (WB) and dew point (DP)
* Calculates Target Superheat (TSH)
* Calculates Target Evaporator Exit Temp (TEET) (aka - delta T, temp split)
* Only digital psychrometer that takes measurments using an electronic sensor (NTC) or k-type thermocouples (T/C)
The SRH2 Diagnostic Psychrometer offers several benefits:
* It's a digital psychrometer.
* It's a diagnostic tool with TSH and TEET built in. No charts to fumble with.
* Choose the NTC or the included WB and DB T/Cs for testing, You decide.
* Faster testing and system diagnosis.
* Test multiple parameters with one instrument.
* All this for about the same cost as competitive digital psychrometers.
The SRH2 Diagnostic Psychrometer offers technicans, contractors, instructors and students even more advantages:
* Quick, easy testing from two sensor sources.
* Clip thermocouples to keep them in place during tests.
* Auto power off (APO) after 15min of inactivity
* Easy to access thermocouple synchronization
* Magnetic hanger and rugged rubber boot for functionality and durability.
The SRH2 comes with our ATWB1 wet bulb thermocouple and the ATA1 dry bulb thermocouple: All the tools you need to perform Target Superheat (TSH) and Target Evaporator Exit Temperature (TEET) and normal psychrometric functions.
Operating temperature: 0 F - 122 F at <75%RH
Storage Temperature: -4 F to 140 F (-20 C to 60 C) 0 to 80%RH with battery removed.
Low battery indication: The +- symbol is displayed when the battery drops below the operating level.
Battery Life: Approx. 150 hours (9V alkaline)
Auto Power Off: After 15 minutes of non-usage.
Temperature (K-Type Thermocouple):
Range: -58 F to 1832 F (-50 C to 1000 C)
Accuracy: 1 F 50 F to 113 F ( 0.5 C 10 C to 45 C), when calibrated to NTC at room temperature
(0.1% rdg+2 F) -58 F to 1832 F
(0.1% rdg+1 C) -50 C to 1000 C
Range: 32 F to 140 F (0 C to 60 C)
1 F 50 F to 113 F ( 0.5 C 10 C to 45 C)
4 F 32 F to 50 F and 113 F to 140 F
2 C 0 C to 10 C and 45 C to 60 C
Relative Humidity: 0% to 100% RH range
Accuracy: 2.5% at 77 F (25 C), 10% to 90%RH
5% at 77 F (25 C) 0 to 10% RH & 90 to 100%RH
Dimensions: 7.9 (H) x 2.6 (W) x 1.4 (D)
Weight: Approx. 11oz with battery installed
Accessories: (ATA1) K-type dry bulb thermocouple w/ clip, (ATWB1) K-type wet bulb thermocouple w/ clip, battery and Operator s Manual.
