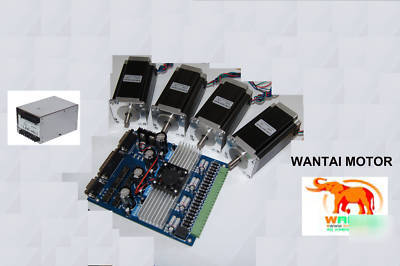

4 PCS Nema 23 Stepper Motors with 354oz-in holding torque, 1 PC 4 Axis Control Board TB6560 Holding torque: 25Kg-cm 354oz-in Aerospace TB4-axis drive board HY-TB4DV-N Instructions 1 Integrated SCM manual control system, you can directly from the computer manual 2 The maximum 3.5A drive current to a maximum 86 stepper motor drives, more powerful 3 1-16 sub-setting, higher accuracy, smoother operation 4 Overload over-current over-temperature protection, full protection of your computer and peripheral equipment 5 4 files current settings can be set according to the user the actual current requirement 6 Full closed-type optical isolation to protect the user's computer and equipment 7 Professional design, two-stage signal processing, super anti-jamming 8: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region 9: 2-way output control, scalable fifth axis or 2-way control of external equipment. 10: Four input control, you can set limit, emergency stop, which is divided into pairs of knives. Double-pole constant flow PWM actuation output. Actuates the electrical machinery 42,57,86 step-by-step the electrical machinery, 2 - 4 (4 6 8 step-by-step electrical machinery) Power output interface function Please note the following before the test items 1 To determine the size of the supply voltage and current 2 Determine the stepper motor power and current (model) 3 Determine the stepper motor wiring 4 Power Please take 12 ~ 36V 8A (stepper motor in accordance with the work of current matching) The above switching power supply, I received a map indicating the power input interface 12V power output for a 12V cooling fan to pick up where The definition of 1-PIN 25 of Parallel Interface is described as follows The definition of 1-PIN15 of Manual Interface is described as follow Click the image to upper right for the P1 left P15 400W Single Output Switching Power Supply AC input range selected by switch. Protections:short circuit/overload/over voltage/over temperature AC input voltage range: 90 132VAC/180 264VAC AC inrush current: cold start 25A/115V,50A/230V DC adjustment range: 10% rated output voltage Overload protection:105% 135%, hiccup mode, auto recovery Setup,rise,hold up time: 200ms,50ms,20ms/230VAC at full load Working temperature and humidity:-10 +60 20% 90 %RH (4 axis nema 23 stepper motor 354OZ-in+ driver+power cnc was posted and is owned by: Brenda Acosta) |
