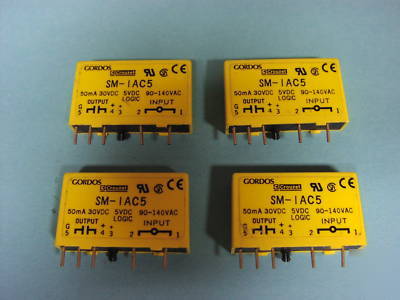

YOU ARE PURCHASING A QUANTITY OF FOUR (4) EACH CROUZET/GORDOS SM SERIES DIGITAL I/O MODULES WITH THE FOLLOWING FEATURES:(1) CE COMPLIANT(2) PLUG INTO MOUNTING BOARDS FOR SM OR 0.6" MODULES.(3) CROUZET/GORDOS PART #SM-I-AC5 INPUT SPECIFICATIONS:(A) NOMINAL VOLTAGE....................................120 VAC(B) MAXIMUM VOLTAGE........................140 VAC/VDC(C) MINIMUM VOLTAGE......................... 90 VAC/VDC(D) INPUT RESISTANCE .......................... 28 kOHMS(E) MAXIMUM CURRENT........................ 5 mA rms(F) DROP-OUT CURRENT ....................... 2.0 mA rms(G) ALLOWABLE CURRENT ................. 2.5 mA rms(H) VOLTAGE FOR NO OUTPUT........... 50 VAC/VDC OUTPUT SPECIFICATIONS:PARAMETER:(A) NOMINAL LOGIC SUPPLY VOLTAGE ........ 5.0 VDC(B) MAXIMUM LOGIC SUPPLY VOLTAGE....... 6.0 VDC(C) MINIMUM LOGIC SUPPLY VOLTAGE ....... 3.0 VDC(D) MAXIMUM LOGIC SUPPLY CURRENT ...... 16.0 mA(E) MAXIMUM LOGIC SY LEAKAGE CURRENT.... 10 microAMP(F) MAXIMUM VOLTAGE (MAXIMUM ALLOWABLE APPLIED VOLTAGE ACROSS OPEN COLLECTOR OUTPUT TRANSISTOR).............. 30.0 VDC(G) MAXIMUM CURRENT (MAXIMUM ALLOWABLE SINKING CURRENT THROUGH OPEN COLLECTOR OUTPUT TRANSISTOR)............. 50.0 mAMP.(H) MAXIMUM LEAKAGE CURRENT ( AT MAXIMUM OUTPUT VOLTAGE AND 25 DEGREES C.) ..................... 10 microAMPERES. THESE UNITS ARE NEW AND HAVE NEVER BEEN INSTALLED. NORMAL PRICE TODAY IS $ 16.00 EACH. (Crouzet digital input modules (4) sm-i-AC5 180-280VACDC was posted and is owned by: Joanne Sanford) |
