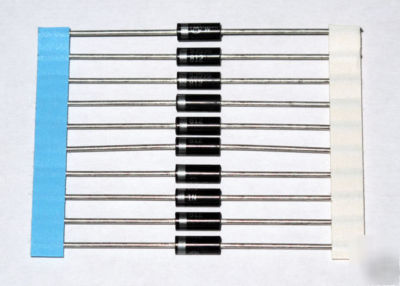

Zener Diodes 24V 5Watt Motorola 1N5359B QTY 20 ELECTRICAL CHARACTERISTICS (TA = 25 C unless otherwise noted, VF = 1.2 Max @ IF = 1 A for all types) Nominal Zener Voltage VZ @ IZT Volts ZZK @ IZK = 1 mA Ohms (Note 2) Max Surge Current ir, Amps (Note 3) Max Voltage Regulation DVZ, Volt (Note 4) Maximum Regulator Current IZM mA (Note 5) NOTE 2. ZENER VOLTAGE (VZ) AND IMPEDANCE (ZZT & ZZK) Test conditions for zener voltage and impedance are as follows: IZ is applied 40 10 ms prior to reading. Mounting contacts are located 3/8, to 1/2, from the inside edge of mounting clips to the body of the diode. (TA = 25 C +8, 2 C). (ir) Surge current is specified as the maximum allowable peak, non-recurrent square-wave current with a pulse width, PW, of 8.3 ms. The data given in Figure 6 may be used to find the maximum surge current for a square wave of any pulse width between 1ms and 1000 ms by plotting the applicable points on logarithmic paper. Examples of this, using the 3.3 V and 200 V zeners, are shown in Figure 7. Mounting contact located as specified in Note 3. (TA = 25 C +8, 2 C.) NOTE 4. VOLTAGE REGULATION (DVZ) Test conditions for voltage regulation are as follows: VZ measurements are made at 10% and then at 50% of the IZ max value listed in the electrical characteristics table. The test current time duration for each VZ measurement is 40 10 ms. (TA = 25 C +8, 2 C). Mounting contact located as specified in Note 2. NOTE 5. MAXIMUM REGULATOR CURRENT (IZM) The maximum current shown is based on the maximum voltage of a 5% type unit, therefore, it applies only to the B-suffix device. The actual IZM for any device may not exceed the value of 5 watts divided by the actual VZ of the device. TL = 75 C at 3/8, maximum from the device body. (Zener diodes 24V 5WATT motorola 1N5359B qty 20 was posted and is owned by: Renee Fleming) |
