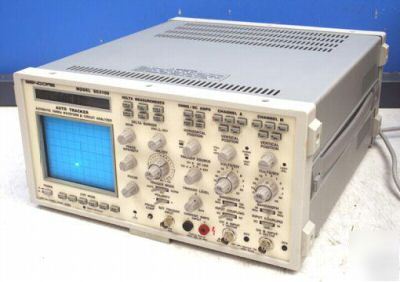

SENCORE SC3100 AUTO TRACKER WAVEFORM & CIRCUIT ANALYZER (012106601210) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Sencore SC3100 "Auto Tracker" Automatic 100 MHz Waveform & Circuit Analyzer * Electrical Requirements: 105 – 125 Volts AC, 50/60 Hz * Measure DC voltage, peak-to-peak voltage, frequency, DC current, ohms, continuity - and analyze waveforms up to 100 MHz in one complete, easy-to-use instrument. The autoranged timebase and vertical attenuators, the SC3100 "Auto Tracker" lets you view signals without resetting controls. With an input capability from 2 mV to 2 kV, the "Auto Tracker" can handle any signal you need to measure. The "fiddle free" sync circuits give you hands-free analyzing all the way from sine waves to video waveforms. The Delta features let you analyze any portion of the waveform without counting graticules. * A complete waveform and circuit analyzing system in one instrument * Integrated measurements of all circuit parameters provides fast troubleshooting answers * Exclusive autoranged timebase and vertical attenuators eliminate wasted time * All functions microprocessor integrated for ease-of-use * Auto-Tracking™ digital readout of waveform voltage and frequency with one probe connection * Full performance, 100 MHz dual trace oscilloscope * Digital delta measurements to analyze every portion of any waveform * Vertical Amplifiers – DISPLAY MODES: Channel A, inverted Channel A (-A), Channel B, dual trace (A&B), algebraic sum (A+B) or difference (B-A), vector (X-Y), CALIBRATION ACCURACY: ±3% at 1 kHz, FREQUENCY RESPONSE (100 MHz): AC coupled: ±3 dB of 1 kHz level from 10 Hz to 100 MHz, usable to 150 MHz, SENSITIVITY: 20 mV/div. to 200 V/div. with supplied 39G292 10X probe; 2 mV/div. to 20 V/div. with (optional) DP270 Direct Probe, MAXIMUM INPUT PROTECTION: Supplied 39G292 10X Probe: 2500 volts breakdown (DC + Peak AC) * Horizontal Sweep: SWEEP RATES: 100 milliseconds/division to 20 nanosecond/division. Autorange automatically selects sweep rate to show approximately 2-5 cycles of waveform. ACCURACY: ±3% * Trigger Circuits: TRIGGER SOURCE: Ch A, Ch B, AC power line, or external, TRIGGER MODES: Norm, Auto, TV * Auto-Tracking™ Digital Tests - DC Volts: DCV FUNCTION: Provides direct reading of DC voltage on selected channel, ACCURACY: ±5% ±2 digits * Peak-to-Peak Volts: VPP FUNCTION: Provides direct reading of peak-to-peak voltage on selected channel with either X10 or direct probes, ACCURACY: ±2% ±4 counts, FREQUENCY RESPONSE: ±0.5 dB from 20 Hz to 30 MHz, less than or equal to -3 dB at 100 MHz * AC Volts: ACV FUNCTION: Calculates RMS sinewave value from PPV measurement; dBm FUNCTION: Calculates dBm measurement from PPV sinewave measurement, referencing 1 mW across 600 Ohms (0 dBm = .7746 volts RMS) * Frequency: Automatically displays the frequency of the signal on selected channel; RANGES: 10.00 Hz to 150 MHz; ACCURACY: 0.001% ±1 digit * Delta Peak-to-Peak: Measures amplitude of intensified area on selected channel * Delta Time: Measures time of intensified waveform portion * 1/Delta Time: Converts Delta Time reading to equivalent frequency * Delta DC Volts: FUNCTION: Measures DC voltage level of marked waveform point in respect to ground using the PPV and DCV functions; MARKER: Fully adjustable over entire range of waveform * Digital Meter Tests: Ohms FUNCTION: Provides in- or out-of-circuit ohms; RANGES: 0.00 to 100 M Ohms; ACCURACY: 0.2% ±2 digits * Continuity Test: Provides audible tone of continuity; RANGE: 0 to 199 Ohms. Audible tone turns on if resistance is less than 10 Ohms and turns off if resistance is greater than 15 Ohms, ±2 Ohms * DC Current: Provides measurement of DC current; RANGES: 0.001 to 1.99 Amp; ACCURACY: 0.3% ±2 digits * Dimensions: 7.25 x 13.75 x 15 inches (18.4 x 34.9 x 38.1 cm) (Sencore SC3100 auto tracker waveform & circuit analyzer was posted and is owned by: Richard Munoz) |
