Numerex unimeasure um 1 cmm metrology system w/software


Numerex unimeasure um 1 cmm metrology system w/software

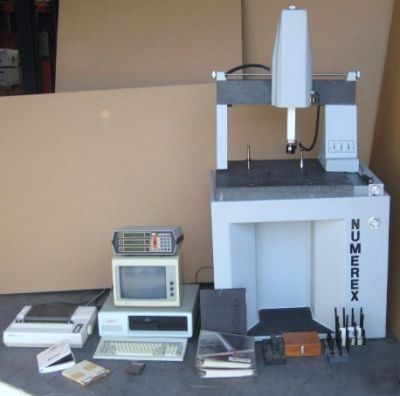

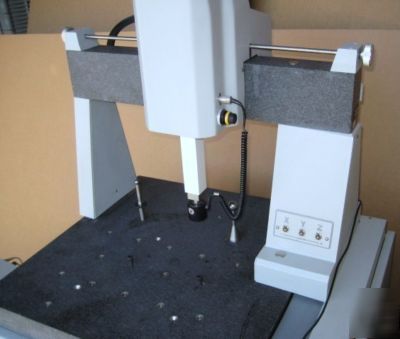

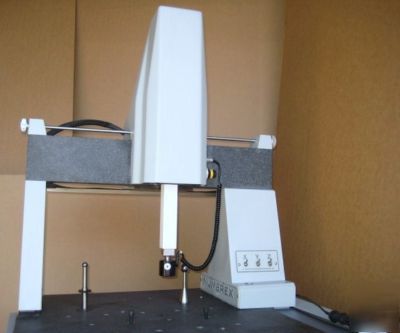

This listing is for a CCM measurement system.
* Model: "Unimeasure I System" (UM 1 System)
Here is a rundown of the components...

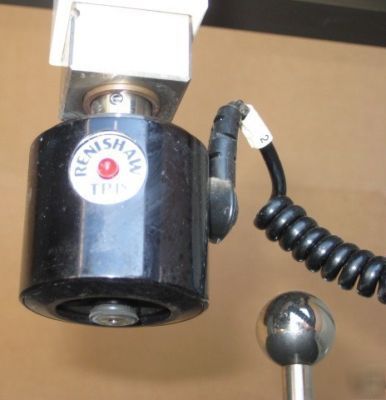

* (1) Renishaw TPIS Head - Serial # B02543
* (1) Set of TE-CO Tooling Components

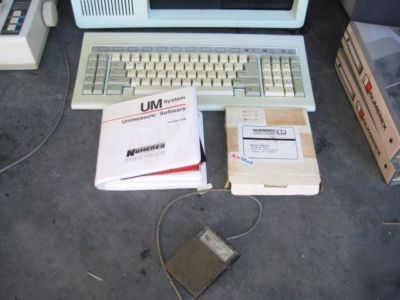

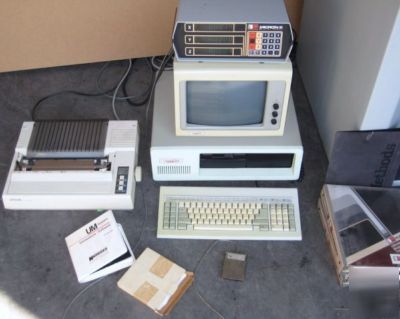

* (1) Ameridata Systems Computer, Monitor and Keyboard
* Computer: Ameridata - Model ASI-PC-IFD
* Monitor: Goldstar - Model MBM-2015 - Chassis MT-5 - Power 120V / 60Hz / 35W
* Keyboard Part #: 72713535

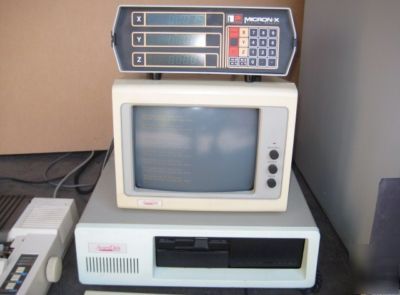

* (1) Numerex Corp Micron-X Digital Readout (DRO)
* Model # DRO-3-ASIX - Option 0

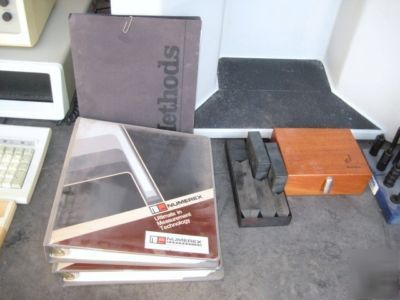

* (2) Numerex Unimeasure Manuals
* Unimeasure I (C) 1986 - System Disk IBM - Part # 83-1013 - Serial # SW0172 032387
* Unimeasure I (C) 1986 - Program Disk #1 IBM - Part # 83-1008 - Serial # SW0172 032387
* Unimeasure I (C) 1986 - Program Disk #2 IBM - Part # 83-1008 - Serial # SW0172 032387
* Unimeasure I (C) 1986 - Program Disk #3 IBM - Part # 83-1008 - Serial # SW0172 032387
* Unimeasure Version 06-15-89 - Disk 1 of 3 - Part # 83-1059 - Serial # SW0615890782
* Unimeasure Version 06-15-89 - Disk 2 of 3 - Part # 83-1060 - Serial # SW0615890782
* Unimeasure Version 06-15-89 - Disk 3 of 3 - Part # 83-1061 - Serial # SW0615890782
* Disk Labeled "Program Copies"
* Build / Original Sale Year: 1987
* Original Sale Price: $19,500
Here is some information from the manual and sale sheet...
* Granite table and guideways certified by laser-interferometer and traceable to the National Bureau of Standards.
* Self purging air bearings on all axes.
* Air consumption is 4-6 CFM - Infinite fine adjustments on all axes.
* Adjustable Z-Zxis air counterbalance concentric with Z shaft.
* 5/8" ball probe for calibrating three integral check points in table.
* Chrome on glass scales with electro-optical readerheads certified by laser-interferometer.
* Air filter and regulator.
Accuracy (Bandwidth at 68 Degrees F, +/- 2 Degrees)
* Repeatability: +/- .0001"
* Pressure Variation: +/- 2 PSI
* Temperature: 68 degrees F (20 degrees C)
* Temperature Variation: 2 degrees F (1 degree C)
* Humidity: 120 grains per pound (specific)
I have nine additional pages from the original sale summary, outlining further specifications and capabilities of this machine. Please call or email if you'd like me to fax over the pages.
This is used and in good condition. It may require proper installation and/or minor, regular maintenance. Otherwise, everything is guaranteed to be in proper working order.
