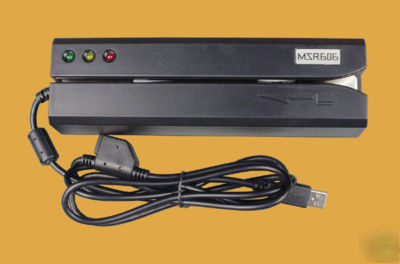

MSR606 HiCo Magnetic Card Reader Writer Encoder MSR206 New MSR606 Magnetic Card Reader Writer Encoder Comp MSR206 For Lo&Hi Co Track 1, 2 & 3 The MSR606 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system. 1). Communication: Standard USB 2). 3-track version can read/write all three tracks data, 300-4000 oe 3). Program software for Windows 98/Me/XP/Vista 4). Reading/Writing magnetic stripe card complied with ISO formats 1). Body: ABS 94V-0 / Metal housing optional 2). Swipe: Manual, single direction 1). Operation: -10oC to 60oC 10 to 85% humidity, non condensing 2). Storage: -30oC to 70oC 10 to 90% humidity, non condensing 1). Current/operating Typical 350mA Max 2). 600mA plus for each writing track 3). Power supply: External switching Power, Input: 100-240VAC, Output: 24VDC 2.5A 1). Read Circuit: Track 1&3: 210bpi Track 2: 75 or 210 bpi 2). Bit per Char: 5-7 bit per char. 3). Media Speed: Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi) 4). Media Coercivity: Read 300-4000 Oe Mag. Card 5). Jitter Card: Read bit to bit interval <+/-15% card 6). Low amplitude Card: Read 60% for both 75& 210bpi 7). Error Rate: Read < 0.5% Write < 0.8% 8). Media Swipe: Head life 1,000,000 passes for both read & write head 9). Configuration( MSR606): Read/Write Track: 1&2&3 Click here to download User Manual, Demo software 1). 1PCS Brand New Magnetic Card Reader/Writer, MSR606. 2). 1PCS Software CD including USB Driver, Demo Software, User Manual 3). 1PCS Power adaptor: AC 100~240V in / DC 24V, 2.2~3A out. 5). 20 Free Blank HiCo Magnetic Card (MSR606 magnetic credit card reader and writer encoder was posted and is owned by: Christi Stephens) |
Christi-Stephens@chicagopartsnetwork.com (Christi Stephens) for more information.
