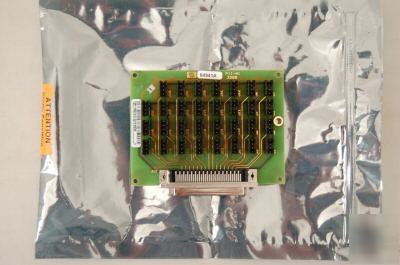

Agilent 84941A Signal Distribution Board The following is from Agilent: The Agilent 84941A signal distribution board is designed to simplify connections between the Agilent 87130A or the 70611A (Option 001) attenuator and switch driver and the devices to be driven. The 84941A consist of one SCSI PC board connector, and 31 four-pin connectors. The 84941A is used to bring the connections from the internal driver board in the 87130A to the outside for ease of connectionto the driven devices. It is not used with external driver boards, Agilent model 84940A. The following is a link to the owners manual: http://cp.literature.agilent.com/litweb/pdf/5988-3824EN.pdf (Agilent 84941A signal distribution board was posted and is owned by: Howard Beach) |
