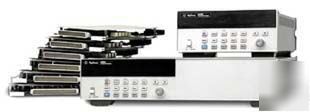

AGILENT 3499A SWITCH/CONTROL MAINFRAME With a wide choice of mainframes and switch modules in the 3499 family, it represents a truly affordable, scaleable platform for switching electronic/optical signals. All mainframe configurations of the Agilent 3499 can scan at rates up to 350 channels per second or open/close 200 channels in less than 0.1 second. Programmable control is provided via either RS-232 or GPIB. The three mainframes provide up to a maximum of 80, 200, or 360 channels respectively in each mainframe. There are 30 different plug-in modules for switching electronic signals from DC to 30 GHz with voltages to 1,000 V and currents to 8 A. Optical signals with wavelengths from 1270 to 1670 nm are covered with three different modules. All modules feature easy wiring for simplifying cabling and increasing reliability. • Mainframe: 5-slot (200 Ch) • Task oriented, self-guiding front-panel • GP-IB and 115 Kbaud RS-232 both standard. • Scan rates up to 350 Ch/second • Open/close 200 Ch in less than 0.1 second • Built-in relay cycle counters “YOUR TOTAL TEST AND MEASUREMENT SOLUTION PROVIDER!†(Agilent 3499A switch/control mainframe: 200 channel was posted and is owned by: Iva Hodges) |
