Zephyr 4810 4' 3D industrial electric container dryer


Zephyr 4810 4' 3D industrial electric container dryer
ECONOMICAL DRYING OF THE WIDEST RANGE OF CONTAINERS AND 3-D ITEMS
The all-electric Zephyr system is fully insulated to provide maximum heat retention.
The Zephyr dries conventional screen inks on a wide range of 3-D parts and containers without distortion. Plastic bottles made of polyethylene, polystyrene, vinyl and other materials are subjected to recirculated heat and forced air cooling to ensure consistent results. The entrance and exit panels of the drying chamber can be adjusted to accomodate containers up to one gallon in size. (Maximum height of part is 14")
Small containers and parts remain upright during the drying process. The Zephyr's solid, table-top support and its nonmetallic woven-mesh Resomite belt provide a smooth journey through the drying chamber.
The cost-efficent warm air recirculation system maintains a uniform curing temperature to 250 degrees F. Conveyor speed control also allows the operator to monitor the amount of exposure printed pieces will receive. A forced air cooling system protects the printed finish and and speeds production.
Constructed of heavy-guage metal, the Zephyr withstands the most rigorous use. It's also fully insulated, thus providing maximum heat retention.
Electrical............................230VAC, 3 phase, 60 Hz
Maximum Temperature........250 degrees F (on belt)
Conveyor Speed........................2 to 5 ft. per minute
Overall Conveyor Length................................25 ft.
Overall Chamber Length................................10 ft.
Cooling Unit Length.........................................5 ft.
Conveyor Height............................................31 in.
Conveyor Width.............................................48 in.

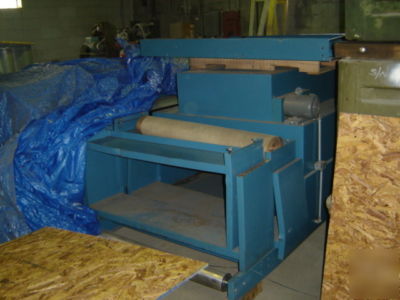

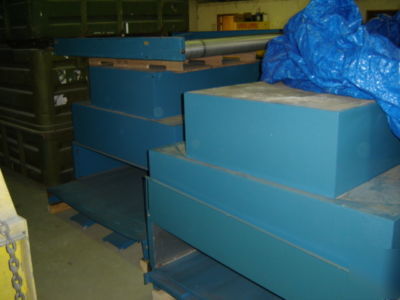

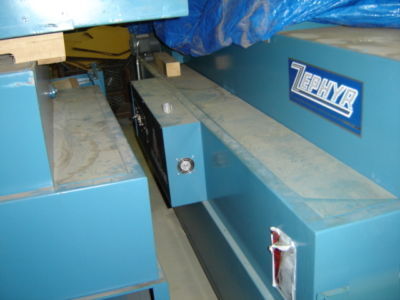

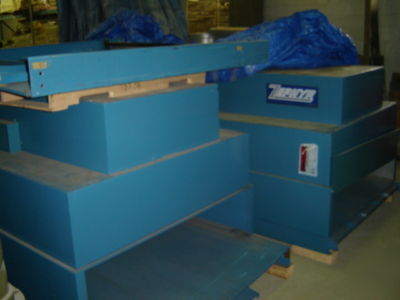

This dryer was purchased in used very good condition but realized before we used it that it would not suit our needs. So, we are now selling this at a loss to clear room for other equiptment.
Pick-up in Niagara Falls, NY is FREE.
(Zephyr 4810 4' 3D industrial electric container dryer was posted and is owned by: Nadine Oneal)
Contact: n.oneal@chicagopartsnetwork.com (Nadine Oneal) (actual email hidden)
Contact n.oneal@chicagopartsnetwork.com (Nadine Oneal) for more information.
