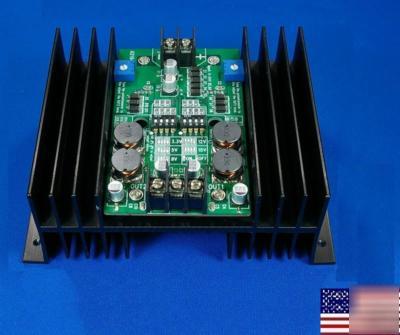

Your Homeland Electronics Store FCB ElectronicsAnn Arbor, Michigan 2 Way 3 Amps Step Down DC-DC Regulator This 2 way step down DC-DC regulator is manufactured by Sure Electronics and designed for heavy duty use. It is a low cost, high reliability, heavy duty load DC-DC converter. Both ways could generate 3A continuous output and work stably. Output voltage could be selected from 3.3/5/9/12/15 by encode switches, and could be fine adjusted through multi turn potentiometers. If in need, just change some resistor value, you could get other output value. All regulators are 100% tested in full load condition, the burn in test time last for over 12 hours in several conditions. All test results are from real measurement, and all diagrams are printed directly from DSO screen capture, we promise that all such snaps are reliable and trusty. DC output range could be selected by encode switch. All regulators passed full load burn-in test. Short circuit / Overload/Wrong DC input Polar Cooling by radiation and Air Flow 28centigrade for full load, 12 centigrade when 50% load Cold start, 15A at 24Volts DC, with 15Volts, 3A dual way output +10% and -15%rated output voltage(@15Volts output) 3.3/5/9/12/15Volts, adjustable with encoder Short Circuit Protection (not guaranteed) 10ms, no less than 2ms, less than 100 s at full load and 24V DC input 100% threshold 0~45 @100%, -10 @80%, 55 @60% load 2P / 7.62mm pitch terminal block , 3P / 7.62mm pitch terminal block (2 way 3 amps step down dc-dc regulator power supply usa was posted and is owned by: Lynnette Jefferson) |
Ljefferson@chicagopartsnetwork.com (Lynnette Jefferson) for more information.
