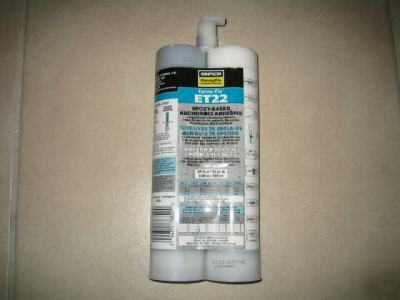

Epoxy-Tie ET is a two-component, 100% solids epoxy-based system for use as a high strength, non-shrink anchor grouting material. Resin and hardener are dispensed and mixed simultaneously through the mixing nozzle. ET meets the ASTM C-881 specifications for Type I II, IV and V Grade 3, Classes B and C. * Bonding hardened concrete to hardened concrete * Pick proof sealant around doors, windows and fixtures * Paste-over for crack injection. Surfaces to receive epoxy must be clean. For installations in or through standing water, see Adhesive Anchors Application Guidelines for details. The base material temperature must be 40° F or above at the time of installation. For best results, material should be 70° F - 80° F at the time of application. Cartridges should not be immersed in water to facilitate warming. To warm cold material, the cartridges should be stored in a warm, uniformly heated area or storage container for a sufficient time to allow epoxy to warm completely. Mixed material in nozzle can harden in 5-7 minutes at a temperature of 40° F or above. Two years from date of manufacture in unopened container. For best results store between 45° F - 90° F. To store partially used cartridges, leave hardened nozzle in place. To re-use, attach new nozzle. Resin – white; Hardener – black; amine based. When properly mixed, ET adhesive will be a uniform medium gray color. Very good to excellent against distilled water, inorganic acids and alkalis. Fair to good against organic acids and alkalis, and many organic solvents. Poor against Ketones. For more detailed information see Technical Bulletin T-SAS-CHEMRES06. PRODUCT/APPLICATION INFORMATION * Adhesive Anchor Application Guidelines * Limited Warranty Information * Material Safety Data Sheet: ET PDF * Material Safety Data Sheet: ET (en Espanol) PDF * Download Catalog Section PDF * Installation into Concrete Grout–Filled CMU * Tension and Shear Load Tables * In Service Temperature Sensitivity City of Los Angeles RR Values for Holdowns in Shearwall and Wall Anchorage Assemblies PDF Product / Application Informationgo to top of page 1. Bulk containers also available, call Simpson for details. 2. Cartridge Estimation Guides are available. 3. Detailed information on dispensing tools, mixing nozzles and other adhesive accessories. PHOTOS OF PRODUCTS go to top of page ET22 TECHNICAL DATAgo to top of page In-Service Temperature Sensitivity ET In-Service Temperature Sensitivity 1. Refer to temperature sensitivity chart for allowable bond strength reduction for temperature. See Adhesive Anchors Application Guidelines. 2. Percent allowable load may be linearly interpolated for intermediate base material temperatures. Anchoring Adhesive shall be a two-component 100% solids epoxy based system supplied in manufacturer's standard side-by-side cartridge and dispensed through a static-mixing nozzle supplied by the manufacturer. Epoxy shall meet the minimum requirements of ASTM C-881 specification for Type I, II, IV, and V, Grade 3, Class B and C and must develop a minimum 13,390 psi compressive yield strength after 7 day cure. Epoxy must have a heat deflection temperature of a minimum 168°F(76°C). Adhesive shall be Epoxy-Tie ET from Simpson Strong-Tie, Pleasanton, CA. Anchors shall be installed per Simpson Strong-Tie's instructions for Epoxy-Tie ET. * City of L.A. RR25185, RR25120; * Florida Statewide Product Approval FL402.2; caution!The Load Tables list values based upon results from the most recent testing and may not reflect those in current code reports. Where code jurisdictions apply, consult the current reports for applicable load values. Anchors installed with ET adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Adhesive Anchors in Concrete and Masonry Elements (AC58). Between Simpson Strong-Tie in-house testing and ICC-ES report ER-4945, ET adhesive is recognized for the following: * Long Term Creep at Elevated Temperature. * Static Loading at Elevated Temperature. * Critical and Minimum Edge Distance and Spacing. In addition, anchors installed with ET adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Unreinforced Masonry Anchors (AC60). (Simpson strongtie anchor system exopy-tie ET22 w/tip was posted and is owned by: Willa Dunlap) |
